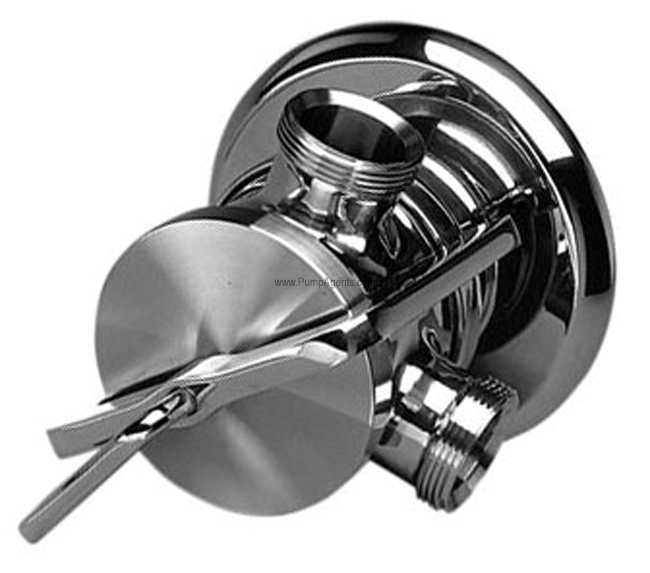

Jabsco 15170-0005 - Bulkhead Mounted Milk Tanker Pump

ID 1333306

1-2 weeks delivery time

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Jabsco 15170-0005 bulkhead-mounted milk tanker pedestal pump end delivers sanitary, stainless-steel fluid transfer for demanding transport service. Built with a 316 stainless steel pump body, sanitary neoprene impeller, and sanitary carbon face seal, it supports high hygiene requirements while providing up to 90 GPM flow, self-priming from dry up to 7.8 ft, and pressure up to 21.7 psi. The bare shaft pedestal end (no motor) uses 2-inch ACME threaded ports, handles soft solids up to 0.7 inch, minimizes shear on thixotropic fluids, and is certified to US 3A standard 02-11; it now ships under catalog number 15170-7365.

Description
Ask a Question

Jabsco 15170-0005 Bulkhead-Mounted Pedestal Pump for Milk Tankers

The Jabsco 15170-0005 is a bulkhead-mounted pedestal pump end intended for sanitary fluid transfer in transport and tanker service. Supplied as a bare shaft pedestal end without a motor, it is built for durability and corrosion resistance and is designed to support hygienic handling while maintaining smooth, steady flow.

Application

Farm pick-up milk tanker trucks equipped with a remote drive
Product pickup pump duty on over-the-road fluid transports
Designed to conform to 3A equipment standard for transferring milk (also suitable for a wide range of fluids)

Compatibility

Updated manufacturer catalog number: ships as Jabsco 15170-7365

Technical Specifications

Pump Type	Bulkhead-mounted pedestal pump end (bare shaft, no motor)
Pump Construction	316 stainless steel
Impeller	Sanitary neoprene
Shaft Seal	Sanitary carbon face seal
Port Size	2 inch ACME threaded ports
Flow Rate	Up to 90 GPM (nominal 90 GPM / 397 LPM at 1750 RPM)
Self-Priming	From dry up to 7.8 ft (also described as up to 10 ft / 3 m)
Maximum Pressure	Up to 21.7 psi
Soft Solids Handling	Up to 0.7 inch maximum diameter
Certification	US 3A standard 02-11
Impeller Temperature Limits	40°F to 150°F (4°C to 65°C)

Product Details

Catalog Number Note: Manufacturer update states this model ships under catalog number 15170-7365.
Mounting: May be mounted in any position.
Rotation: Pump shaft rotation determines intake and discharge port location; normally assembled at the factory for clockwise rotation when viewed at the end cover.
Lubrication Requirement: Unit depends on the liquid pumped for lubrication; do not run dry for more than 30 seconds to avoid impeller and component damage.
Line Requirement: Intake and suction lines must be airtight to help prevent product foaming and to assure self-priming; use non-collapsible hose.
Fluid Handling: Minimizes shear to thixotropic fluids.
Serviceability: Easy to service and maintain.

Features

316 stainless steel construction for corrosion resistance
Sanitary neoprene impeller and sanitary carbon face seal to support hygienic transfer
2 inch ACME threaded ports for tanker-style connections
Excellent self-priming, smooth steady flow, and faster loading characteristics
Handles soft solids in suspension up to 0.7 inch diameter

Spare Parts (As Listed)

Major Overhaul Kit / Rebuild Kit: Catalog 90076-0015 (service kit with impeller, O-ring, and seal)
Impeller: Catalog 8984-0005 (neoprene)
Shaft Seal: Catalog 9023-0000 (service kit with impeller, O-ring, and seal)
