ID
1331244
$ 59.98
1-2 weeks delivery time
-
+
The Jabsco 14750-0001B neoprene impeller is an 8-blade replacement rotor for Jabsco rubber impeller pumps, built with a single flat drive and a 8 mm shaft fit. Its 32 x 12 mm size and brass insert support dependable circulation for water and other simple media in marine and industrial applications, with a recommended operating temperature range of approximately 4°C to 80°C. For long idle periods, lubrication is recommended to help prevent sticking and maintain reliable pump start-up.
- Description
- Ask a Question
-

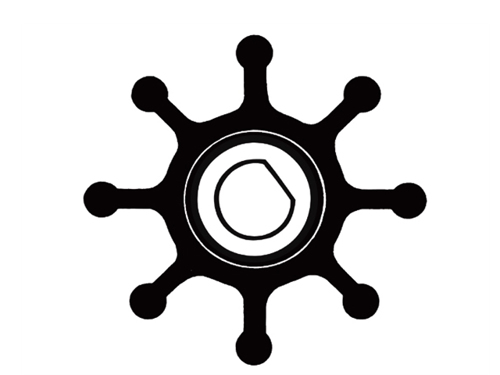

Jabsco 14750-0001B Neoprene Impeller Unit With Single Flat Drive
The Jabsco 14750-0001B is a neoprene impeller intended for Jabsco rubber impeller pumps. It is used in marine and industrial applications to support consistent circulation, including marine engine cooling-water service, and is designed for straightforward maintenance.
Application
- For Jabsco rubber impeller pumps
- Marine and industrial use
- Suitable for pumping simple media such as water
- Supports water circulation for marine engine cooling systems
Technical Specifications
Brand Jabsco Supplier Code 14750-0001B Order Number 00320220 Barcode 671880597500 Material Neoprene Insert Material Brass Number of Blades 8 Impeller Hub / Drive Single Flat Drive Diameter 32 mm Depth 12 mm Overall Dimensions 32 x 12 mm Shaft Diameter 8 mm Temperature Range Approximately 4°C to 80°C Pressure Range Medium
Product Details
- Product Portfolio: Impeller
- Maintenance Note: Lubricate if idle for long periods to help avoid sticking
- Material Compatibility: Check compatibility of all pump materials that contact the pumped medium before operation
Features
- Neoprene construction
- 8-blade configuration
- Single flat drive hub design
- Brass insert
-
