Lenco 15186-107 Pro Control AUTO Edge trim kit 12x12 is an automatic leveling system for boats 5,1–9,1 m, featuring Edge Mount design for limited space installations, stainless steel components, and full Micro C connectivity.
- Description
- Ask a Question
-
Lenco 15186-107 - Kit Pro Control Auto Edge 12x12
Pro Control AUTO Trim Kit Edge Mount delivers automatic levelling designed for high precision, stable control and improved comfort on the water. The Edge Mount configuration is intended for installations where aft space is limited or a lower actuator mounting position is required.
Key Features
- Automatic trim levelling system for enhanced control
- Edge Mount design for restricted installation spaces
- Suitable for boats 5,1 - 9,1 MT
- Corrosion-resistant stainless steel components

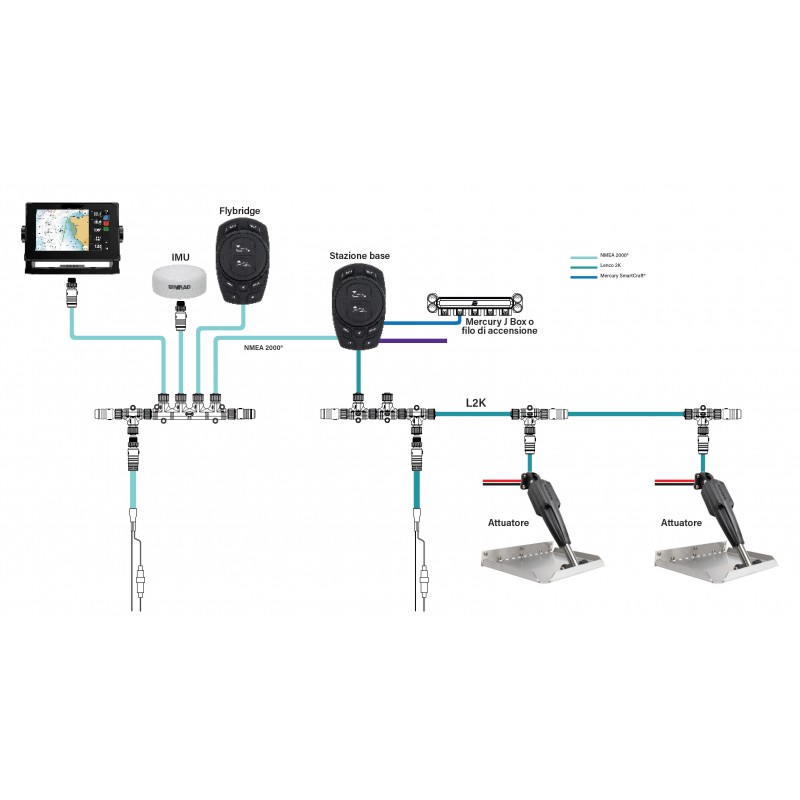

- Complete plug-and-play Micro C system integration

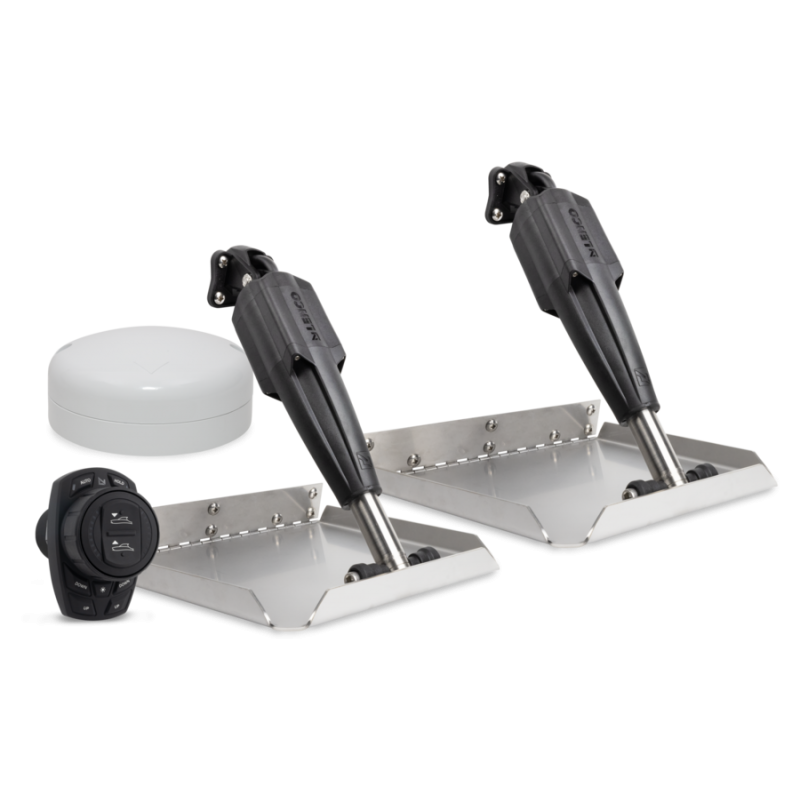

Kit Contents
- 1 Pro Control Auto Keypad (15174-107)
- 1 Pro Control Auto IMU (15180-001)
- 2 stainless steel 304 blades (2.7 mm, 12 gauge)
- 2 SD Pro actuators, 2.25’ stroke, 10’ pin-to-pin (5426530 / 15187-001)
- 6 Micro C T-connectors (30267-001)
- 1 Micro C power cable with fuse and ground (30281-001)
- Drop cables: 2 x 6’, 1 x 15’, 1 x 25’
- 2 Deutsch to Micro C 6-pin adapter cables (30377-001)
- 2 Pro Control actuator power cables 3’ (30378-001)
- 2 wake-up signal adapters for non-Mercury systems (30376-001)
- 2 upper mounting brackets with gland gasket (15193-101)
- 2 lower mounting brackets (15194-101)
- 2K backbone kit
Technical Data

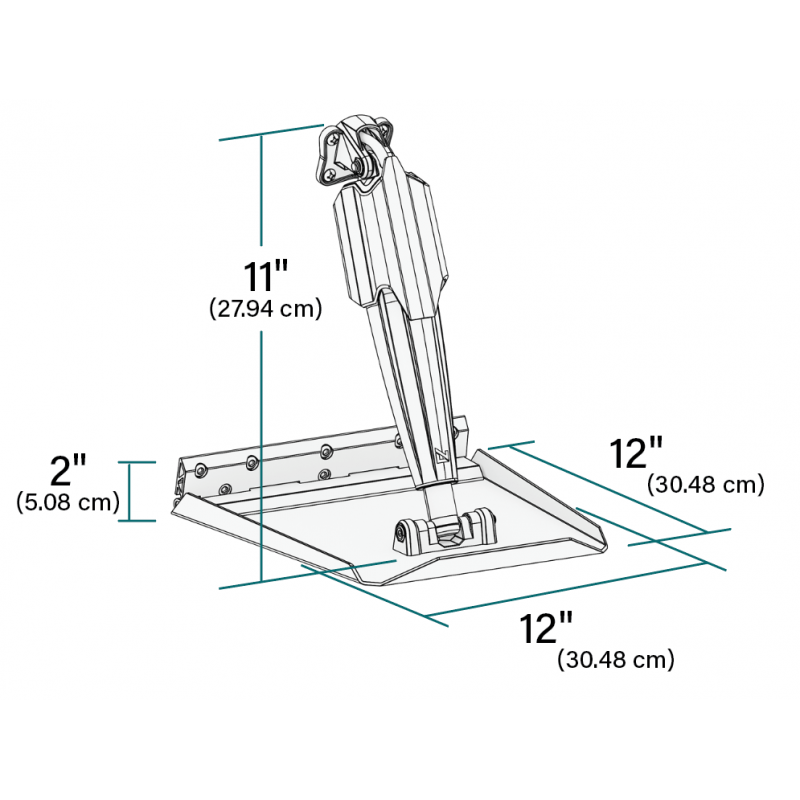

Boat Length 5,1 - 9,1 MT Mount Type Edge Mount Blade Material Stainless Steel 304 Blade Thickness 2.7 mm Barcode 874847009027
Brand: Lenco
-
