Lenco 15182-107 - Kit Pro Control Auto Standard 9X12

ID 1373826

$ 4,044.24

1-2 weeks delivery time

- +

Add to cart

Lenco 15182-107 Pro Control AUTO trim kit 9x12 is an automatic trim tab system for boats 4,9–7,6 m, including stainless steel blades, SD Pro actuators, and full Micro C integration for improved vessel stability.

Description
Ask a Question

Lenco 15182-107 - Kit Pro Control Auto Standard 9X12

Lenco Pro Control AUTO Trim Kit Standard Mount delivers advanced automatic levelling for improved precision, smoother control and greater onboard comfort. Designed for fishing boats with centre consoles and cabin cruisers, this system is suitable for boats from 4,9 - 7,6 m.

Key Features

The Pro Control AUTO system automatically adjusts trim tabs for enhanced stability and performance on the water. The kit includes durable stainless steel 304 trim tab blades, SD Pro actuators and complete installation accessories for reliable operation.

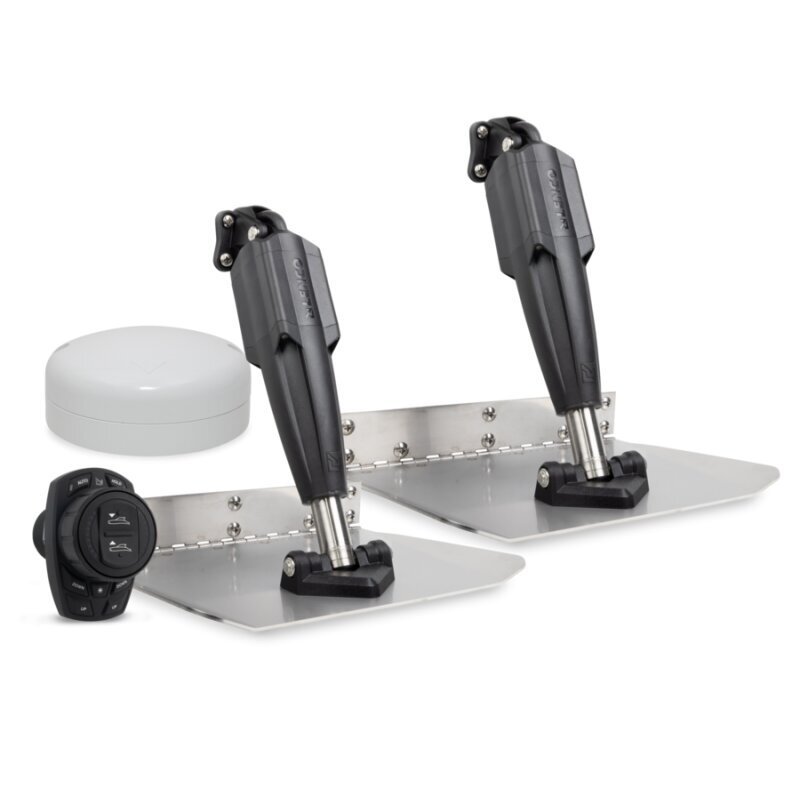

Kit Contents

Keypad	1 x Pro Control Auto Keypad (15174-107)
IMU	1 x Pro Control Auto IMU (15180-001)
Blades	2 x Standard stainless steel 304 blades, 2.7 mm, 12-gauge
Actuators	2 x SD Pro 2.25‘ stroke, 10’ pin-to-pin actuators (5426530 Original Ref. 15187-001)
T-Connectors	6 x Micro C T-connectors (30267-001)
Power Cable	1 x Micro C power cable with fuse and ground (30281-001)
Drop Cables	2 x Micro C drop cables 6‘ (30269-002), 1 x 15’ (30269-001), 1 x 25' (30269-004)
Adapter Cable	2 x Detusch to Micro C actuator 6-pin mains adapter cable (30377-001)
Actuator Power Cable	2 x 3' Pro Control actuator power cable (30378-001)
Wake-Up Signal Adapter	2 x Wake-up signal adapter for non-Mercury systems (30376-001)
Upper Brackets	2 x Corrosion-resistant upper mounting brackets with gland gasket (15193-101)
Lower Brackets	2 x Corrosion-resistant lower mounting brackets (15194-101)
Backbone Kit	2K backbone kit

Applications

Ideal for centre console fishing boats and cabin cruisers requiring automatic trim adjustment, stability enhancement and improved handling.

Brand: Lenco
