$ 1,743.69
1-2 weeks delivery time
Item:
- Hydraulic
- Electric BOLT
The Bennett AutoTrim Pro (AP000A1BC / AP000A1HA) is an automatic trim tab control system combining auto trim, manual control, and LED position indication in a single keypad. Available for BOLT electric systems and hydraulic trim tab systems. Includes control panel, control unit, connection cable (up to 7.5 m), and installation materials. Supports automatic tab adjustment, auto retract, and programmable settings.
- Description
- Ask a Question
-
Bennett AutoTrim Pro Automatic Trim Tab Control Systems (Electric BOLT / Hydraulic) – Smart Control with LED Indicator

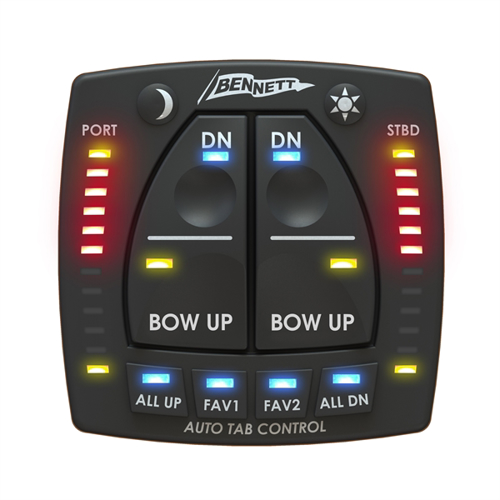

The Bennett AutoTrim Pro (AP000A1BC / AP000A1HA) is an advanced trim tab control system that integrates automatic trim adjustment, manual control, and trim tab position indication into a single compact keypad.
The system automatically adjusts trim tabs based on boat speed, sea conditions, and load distribution to maintain optimal pitch and roll. Manual override is always available, allowing precise control when required.
Key Features
- Automatic trim tab adjustment for optimal boat performance
- Manual control with instant override
- LED trim tab position indication with adjustable brightness
- Stores two preset running positions (FAV1 / FAV2)
- One-touch “All Up” and “All Down” functions
- Automatic tab retraction when ignition is switched off
- OEM adjustable response time
- Compact keypad design for easy installation
- Water-resistant construction for marine environments
Applications
- Automatic trim control for improved vessel stability and efficiency
- Upgrade for existing trim tab systems
- Installations requiring automated trim optimization
Scope of Supply
- AutoTrim Pro control panel
- Control unit
- Connection cable
- Installation materials
Available Variants
Model System Compatibility Cable Length AP000A1BC Bennett BOLT (Electric Systems) 7.5 m AP000A1HA Hydraulic Trim Tab Systems Standard
Technical Specifications
- Type: Automatic Trim Tab Control System
- Functions: Auto / Manual / Position Indicator
- Control Interface: Keypad with LED indicators
- Compatibility: Electric (BOLT) or Hydraulic systems
- Operation: Automatic adjustment based on conditions
-
