The Lewmar 140TT Proportional Bow Thruster features a 2.2 kW brushless induction motor operating on a 24V system with a 140 mm tunnel diameter. Delivering 21 kgf of proportional thrust while drawing 100 A at full power, it provides precise low-speed manoeuvring, unlimited running time, quiet operation, and virtually maintenance-free performance for modern marine installations.
- Description
- Ask a Question
-

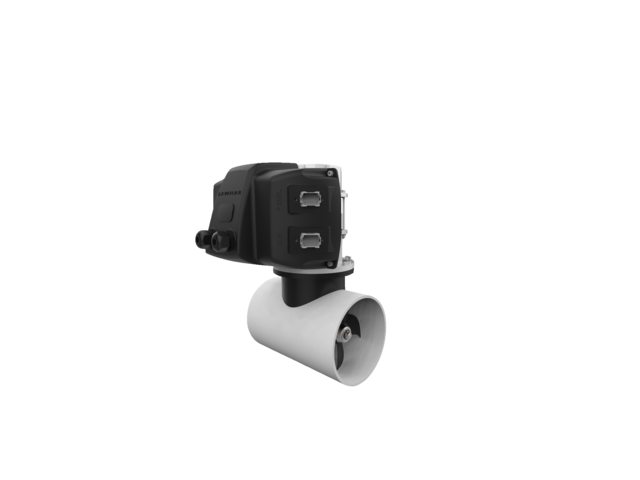

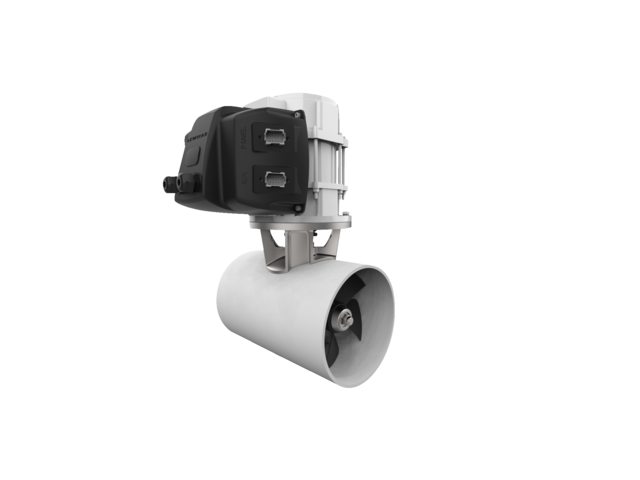

Lewmar 140TT Proportional Bow Thruster 24V 2.2 kW with 140 mm Tunnel
The Lewmar 140TT Proportional Bow Thruster combines brushless induction motor technology with proportional thrust control to provide smooth, accurate manoeuvring in demanding docking and close-quarter situations. Designed for continuous operation, the brushless motor minimizes maintenance requirements while delivering quiet, efficient performance. The system is also backward compatible with existing Lewmar installations, making it suitable for both new builds and retrofit projects.
Key Features
- Brushless induction motor for quiet, efficient operation.
- Proportional thrust control for precise manoeuvring.
- Continuous operation with no practical running time limitation.
- Virtually maintenance-free design.
- Low power consumption compared to conventional DC thrusters.
- Backward compatible with existing Lewmar thruster installations for simplified retrofitting.
Technical Specifications
Specification Value Osculati Part No. 02.146.02 Model 140TT Tunnel Diameter 140 mm Motor Voltage 24 V Power Output 2.2 kW Current Draw 100 A Maximum Thrust (100% Input) 21 kgf Weight 18.5 kg
Applications
The Lewmar 140TT Proportional Bow Thruster is designed for vessels requiring smooth, accurate low-speed manoeuvring and frequent thruster operation. Its proportional control system allows precise adjustment of thrust while the brushless motor provides reliable continuous-duty performance with minimal maintenance.
Package Contents
- Lewmar 140TT Proportional Bow Thruster with 140 mm tunnel.
-
