ID
1380359
$ 12,466.80
1-2 weeks delivery time
-
+
The Lewmar 250TT Proportional Bow Thruster combines an 8.0 kW brushless induction motor with proportional control for smooth, highly accurate manoeuvring. Operating on a 24V system, it delivers 119 kgf of thrust with continuous-duty capability, quiet performance, minimal maintenance, and backward compatibility for upgrading existing Lewmar thruster installations.
- Description
- Ask a Question
-

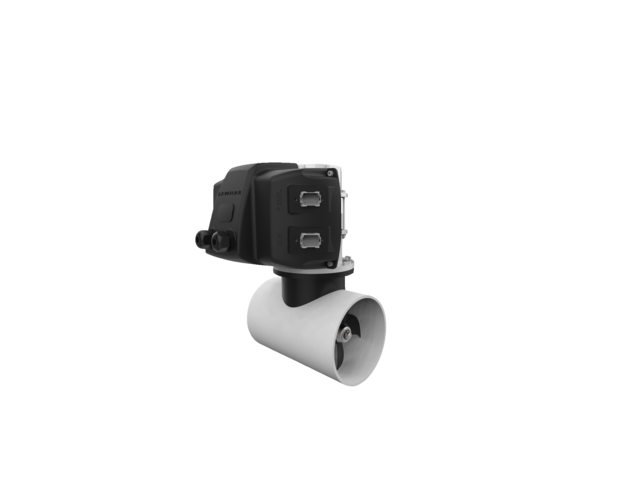

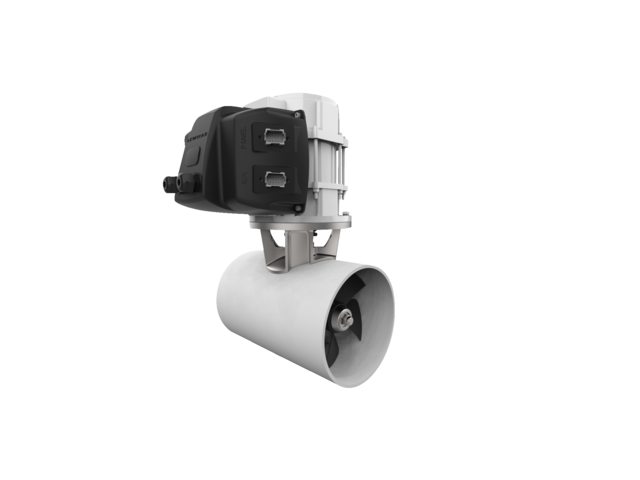

Lewmar 250TT Proportional Bow Thruster 24V 8.0 kW
The Lewmar 250TT Proportional Bow Thruster is engineered for precise vessel handling using advanced brushless induction motor technology. Designed for demanding manoeuvring applications, it provides smooth proportional thrust control, continuous operation without duty cycle limitations, and significantly reduced maintenance requirements. Its quiet operation, low power consumption, and backward-compatible design make it suitable for both new installations and retrofit projects.
Key Features
- Brushless induction motor with proportional thrust control.
- Continuous operation without practical running time limitations.
- Low power consumption with high operating efficiency.
- Virtually maintenance-free motor design.
- Quiet operation for improved onboard comfort.
- High precision during docking and low-speed manoeuvring.
- Backward compatible for replacing existing Lewmar thruster installations.
Technical Specifications

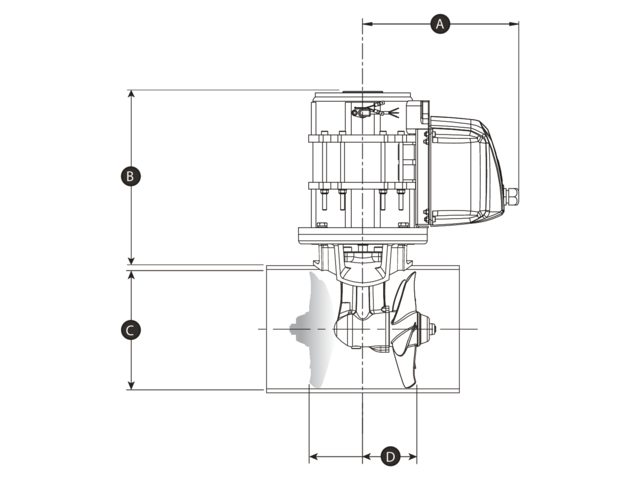

Specification Value Osculati Part No. 02.146.08 Lewmar MPN 59094001 Model 250TT Voltage 24 V Power Output 8.0 kW Maximum Thrust 119 kgf Current Draw 360 A Dimension A 313 mm Dimension B 370 mm Dimension C 250 mm Dimension D 238 mm
Applications
The 250TT Proportional Bow Thruster is designed for vessels requiring powerful, precise manoeuvring and frequent thruster operation. Its proportional control system delivers smooth thrust adjustments for accurate docking, while the brushless motor ensures reliable continuous performance with minimal maintenance.
Package Contents
- Lewmar 250TT Proportional Bow Thruster 24V 8.0 kW.
-
