ID
1367024
$ 36.05
1-2 weeks delivery time
Shaft Diameter:
- 22
- 25
- 30
- 35
- 40
Stern Tube Diameter:
- 36
Length, mm:
- 75
- 80
- 100
- 120
- 140

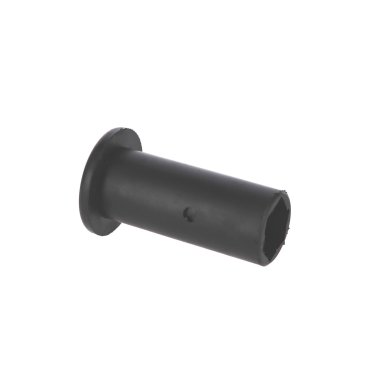

The Super Marine elastomer cutlass bearing with flange is a water-lubricated shaft bearing for marine propulsion systems. Designed for shaft diameters from 22 mm to 40 mm with outer diameters from 29 mm to 54 mm and lengths from 75 mm to 140 mm. Manufactured from high-density injected elastomer and supplied with nylon fixing screws for secure installation.
- Description
- Ask a Question
-
Super Marine Elastomer Cutlass Bearing with Flange – Shaft Ø22–40 mm
The Super Marine elastomer cutlass bearing with flange is designed for reliable shaft support in marine propulsion systems. This bearing features a flanged design for secure positioning and easy installation in the stern tube.
Manufactured from high-quality injected elastomer, the bearing offers increased density, improved wear resistance, and long service life in harsh marine environments. The water-lubricated design ensures smooth shaft rotation with reduced friction, vibration, and noise.
Key Features
- Cutlass bearing with integrated flange
- High-density injected elastomer construction
- Water-lubricated operation
- Reduced friction and vibration
- Corrosion-resistant and durable
- Nylon fixing screws included
Technical Specifications
Shaft Diameter (mm) Outer Diameter (mm) Length (mm) SKU 22 29 75 SAEBG222975 22 36 80 SAEBG223680 25 36 100 SAEBG2536100 25 40 120 SAEBG2540120 30 40 120 SAEBG3040120 35 54 140 SAEBG3554140 40 54 140 SAEBG4054140
The flanged construction allows precise axial positioning within the housing, preventing movement during operation. These bearings are suitable for both recreational and commercial vessels.
-
