ID
1341635
$ 284.95
1-2 weeks delivery time
-
+
Marechal DSN6 industrial plug engineered for high-current applications, featuring automatic sealing and a robust blue polyester housing. It supports 63 A at 440 V AC and offers very high environmental protection up to IP69.
- Description
- Ask a Question
-

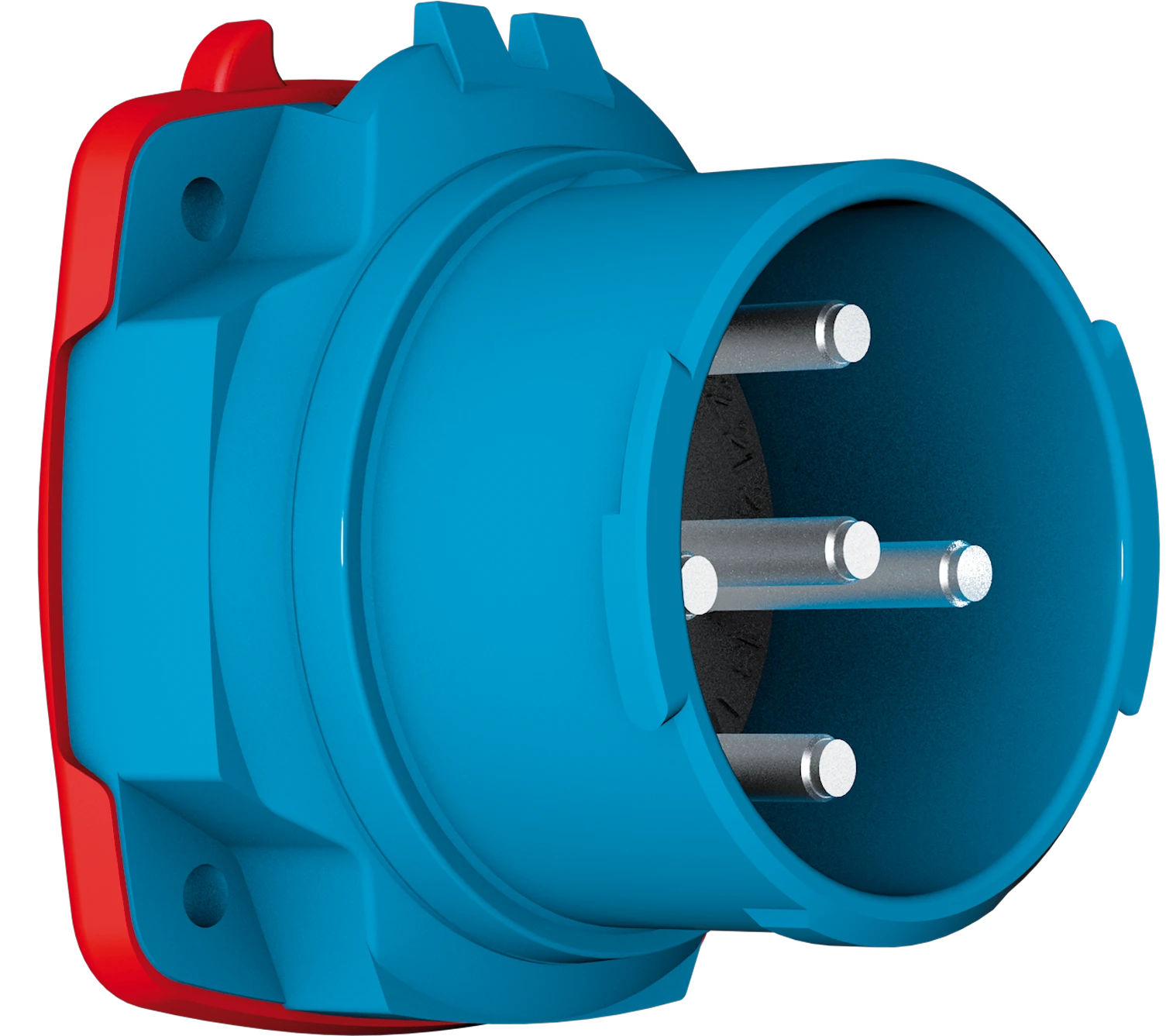

Marechal 6168013 - DSN6 Plug M Plastic Blue Ip66/67/69 3P+E 63A 440V AC
The Marechal DSN6 plug is a high-performance industrial connector engineered for high-current applications. Equipped with an automatic sealing system compliant with IEC60529, it delivers exceptional protection up to IP69. Its blue polyester construction ensures high mechanical strength and resistance to harsh environmental conditions, while maintaining reliable electrical performance.
Key Features
- Automatic seal in accordance with IEC60529
- Very high ingress protection for extreme environments
- High current capacity for heavy-duty applications
- Excellent impact and short-circuit resistance
- Durable blue polyester housing
Technical Data
Contacts 3P + E Rated Current 63 A Voltage 440 V AC Power AC-22 / AC-23 30 kW Cable Section 6 – 16 mm² Material Blue Polyester Protection Rating IP66 / IP67 / IP69 Impact Resistance IK09 Short-Circuit Current 10 kA Operating Temperature -40°C to +60°C
Marechal – 6168013
-
