Marechal DSN3 industrial socket with self-closing lid and automatic sealing system, designed for harsh indoor and outdoor environments. Rated at 32 A and up to 440 V AC, it provides high ingress protection up to IP69 and strong resistance to impact and short circuits.
- Description
- Ask a Question
-

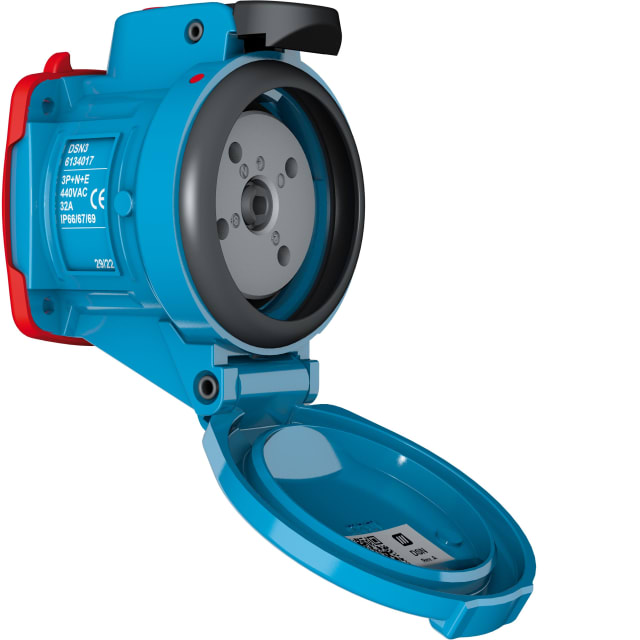

Marechal 6134013R - DSN3 Socket Poly Blue Ip66/67 3P+E 32A 400V 50Hz Self-Closing Lid
The Marechal DSN3 socket is a robust industrial decontactor designed for demanding environments. It features an automatic sealing system compliant with IEC60529, ensuring reliable protection against dust and water ingress. The self-closing lid enhances safety and durability, making it suitable for intensive industrial applications. With high impact resistance and excellent performance across extreme temperatures, this socket guarantees long-term operational reliability.
Key Features
- Automatic seal in accordance with IEC60529
- High protection level for harsh industrial environments
- Self-closing lid for enhanced safety
- High short-circuit resistance
- Suitable for indoor and outdoor installations
Technical Data
Contacts 3P + T Rated Current 32 A Voltage 400 V / 440 V AC Frequency 50 Hz Power AC-22 / AC-23 10 kW Cable Section 2.5 – 6 mm² Material Polyester Protection Rating IP66 / IP67 / IP69 Impact Resistance IK09 Short-Circuit Current 10 kA Operating Temperature -40°C to +60°C Number of Poles 3 Number of Cones 4 Model DSN3 - 3P+T Packaging Box
Marechal – 6134013R
-
