ID
1339914
$ 73.52
1-2 weeks delivery time
-
+
The Bals wall mounting socket outlet is built for demanding electrical setups, supporting 32A current and 200–250V~ at 50/60Hz. Its IP67 rating makes it suitable for environments requiring high dust and water protection.
- Description
- Ask a Question
-

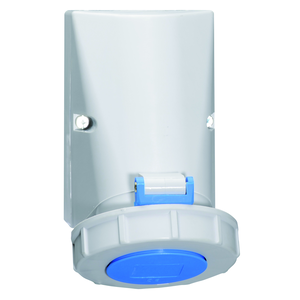

Bals 1145 - Wall Mounting Socket Outlet Housing Dimensions 126x83 230V 32A 2P+T IP67
The Bals wall mounting socket outlet is a robust and reliable solution designed for demanding electrical installations. It supports a current rating of 32A and operates within a voltage range of 200–250V~ at 50/60Hz. With a high protection degree of IP67, this socket outlet is suitable for harsh environments where dust and water resistance are essential.
Product Overview
This wall mounting socket outlet features a durable polyamide enclosure and a practical hinged lid design. The housing ensures long-term reliability, while the blue RAL 5015 colour coding allows quick visual identification. The lower part of the housing can be rotated by 180°, providing flexible installation options.
Electrical Specifications
Current 32A Voltage 200 – 250V~ Frequency 50/60Hz Number of Poles 3p Arrangement of Phases 2P+PE Position of Earth Contact 6 h
Mechanical And Housing Data
Product Category Wall Mounting Socket Outlet Protection Degree IP67 Dimension of Enclosure 126x83 mm (HxW) Height 161 mm Width 94 mm Depth 139 mm Material of Enclosure Polyamide
Connection And Installation
Connection Design With Screw Terminal Maximum Conductor Size 10.0 qmm Cable Entry 1x M25 Top, 2x M25 Bottom Additional Information One cable entry at top open, two at bottom closed.
Lower part of housing rotatable by 180°.
Four cut-out fixing holes in the lower part of housing.
Materials And Contacts
Contact Carrier Polyamide Contacts Brass
Colour Information
Colour Code Blue RAL 5015 Colour of Appliance Hinged Lid Blue RAL 5015 Housing Bottom Grey RAL 7035 Housing Top Grey RAL 7035 Bayonet Ring Grey RAL 7035
Brand: Bals
Barcode (EAN): 4024941011457 -
