ID
1375006
$ 31.07
1-2 weeks delivery time
Size:
- 1 1/2"x38 mm
- 2 1/4"x38 mm
- 2 1/4"x53 mm
The Osculati Long Skin Fitting is manufactured from nylon/fiberglass and fitted with a stainless steel visible head, integrated hose connector, and built-in check valve. Available for hose diameters of 38 mm and 53 mm with thread sizes 1" 1/2 and 2" 1/4. Depending on the version, body diameter ranges from 48 mm to 57 mm, overall length from 126 mm to 172 mm, and flange diameter from 46 mm to 95 mm. Designed for marine drainage systems requiring backflow prevention and a stainless steel visible finish.
- Description
- Ask a Question
-

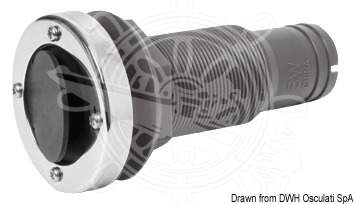

Osculati Long Nylon/Fiberglass Skin Fitting with Stainless Steel Head, Hose Connector and Check Valve – 38-53 mm Hose Tail
The Osculati Long Skin Fitting combines a nylon/fiberglass body with a stainless steel visible head and integrated hose connector. The built-in check valve helps prevent reverse flow, making these fittings suitable for marine drainage and discharge systems where backflow protection is required.
The long-body construction provides additional installation depth while maintaining a durable and corrosion-resistant design for marine environments.
Key Features
- Nylon/fiberglass body construction
- Stainless steel visible head
- Integrated hose connector
- Built-in check valve
- Long-body through-hull design
- Suitable for marine drainage and discharge systems
Technical Specifications
Osculati Code Hose Tail Ø A (mm) Thread B Body Ø B (mm) C (mm) Flange Ø D (mm) Length E (mm) Version Check Valve 17.327.18 38 2" 1/4 57 77 95 172 Stainless steel head with hose holder Yes 17.327.19 53 2" 1/4 57 77 46 126 Stainless steel head with hose holder Yes 17.319.20 38 1" 1/2 48 78 70 135 Stainless steel head with hose holder Yes
Available Variants
- 38 mm Hose Tail, 2" 1/4 Thread, with Check Valve – Osculati 17.327.18
- 53 mm Hose Tail, 2" 1/4 Thread, with Check Valve – Osculati 17.327.19
- 38 mm Hose Tail, 1" 1/2 Thread, with Check Valve – Osculati 17.319.20
Applications
- Marine drainage systems
- Cockpit drain installations
- Bilge discharge systems
- Water evacuation systems
- Applications requiring backflow prevention
- Through-hull hose connections
-
