Osculati Angled Skin Fitting with Stainless Steel Flange – 38-50 mm Hose Tail, 15° Inclined

ID 1375016

$ 23.68

1-2 weeks delivery time

Size:

2" 1/4x38 mm
2" 1/4x50 mm

The Osculati Angled Skin Fitting features a mirror-polished stainless steel visible flange and a 15° inclined body for marine drainage installations. Available with 38 mm or 50 mm hose connections and a 2-1/4" thread, both versions have a body diameter of 57 mm, outside diameter of 76 mm, flange diameter of 94 mm, and overall length of 170 mm. Designed for through-hull drainage applications where an angled outlet is required.

Description
Ask a Question

Osculati Angled Skin Fitting with Stainless Steel Flange – 38-50 mm Hose Tail, 15° Inclined

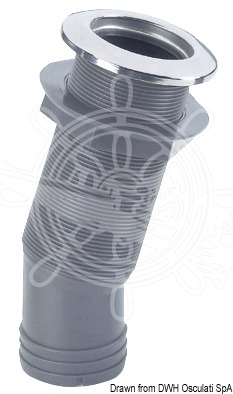

The Osculati Angled Skin Fitting is designed for marine drainage and discharge systems. It features a mirror-polished stainless steel visible flange and a 15° inclined outlet configuration, providing an attractive appearance and efficient hose routing through the hull.

The fitting is available with 38 mm and 50 mm hose tail connections while maintaining the same external dimensions and 2-1/4" threaded body.

Key Features
- Mirror-polished stainless steel visible flange
- 15° inclined design
- Suitable for marine through-hull installations
- Available with 38 mm or 50 mm hose tail
- 2-1/4" threaded body
- Durable construction for marine environments
Technical Specifications

Osculati Code Hose Tail Ø A (mm) Thread B Body Ø B (mm) Outside Ø C (mm) Flange Ø D (mm) Length E (mm)

17.329.06 38 2" 1/4 57 76 94 170

17.329.07 50 2" 1/4 57 76 94 170

Available Variants
- 38 mm Hose Tail – Osculati 17.329.06
- 50 mm Hose Tail – Osculati 17.329.07
Applications
- Marine drainage systems
- Through-hull discharge installations
- Cockpit drainage
- Water evacuation systems
- Applications requiring a 15° angled outlet
