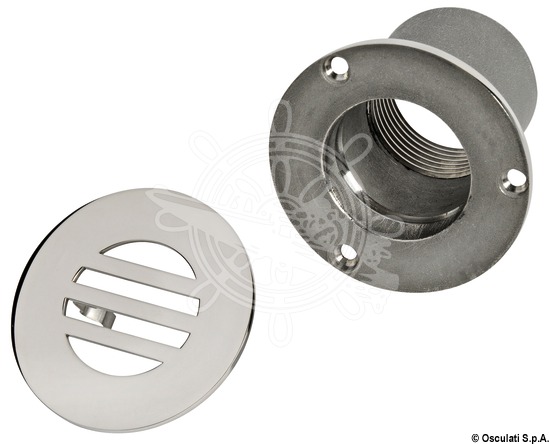

Osculati AISI 316 Stainless Steel Cockpit Drain with Snap-On Grille

ID 1375095

$ 41.94

1-2 weeks delivery time

Size:

1"
1 1/4"

The Osculati Cockpit Drain is manufactured from mirror-polished AISI 316 stainless steel and designed for efficient cockpit water drainage. The unit features a removable snap-on upper grille that conceals the fastening screws for a clean appearance and easier installation. Available with 1" or 1-1/2" internal thread connections, with face diameters of 58 mm and 80 mm respectively.

Description
Ask a Question

Osculati AISI 316 Stainless Steel Cockpit Drain with Snap-On Grille – 1" and 1-1/2" Internal Thread

The Osculati Cockpit Drain is a marine-grade drainage fitting manufactured from mirror-polished AISI 316 stainless steel. Designed for cockpit and deck drainage applications, it incorporates a removable snap-on grille that simplifies installation while concealing the mounting screws for a clean and professional finish.

Key Features
- Manufactured from mirror-polished AISI 316 stainless steel.
- Designed for cockpit drainage systems.
- Snap-on upper grille for easy installation and maintenance.
- Hidden fastening screws for a clean appearance.
- Corrosion-resistant construction suitable for marine environments.
- Available with 1" and 1-1/2" internal thread connections.
Available Variants

Osculati Code A B x C E Internal Thread

17.118.49 58 mm 50 x 38 mm 5.3 mm 1"

17.118.50 80 mm 52 x 51 mm 5.5 mm 1-1/2"

Applications
- Cockpit drainage systems.
- Deck drainage installations.
- Water evacuation from marine decks and work areas.
- Sailing yachts, motorboats, and commercial vessels.
Construction

The drain body and visible components are manufactured from AISI 316 stainless steel with a mirror-polished finish. The removable grille design allows access to the mounting hardware while maintaining a neat appearance once installed.
