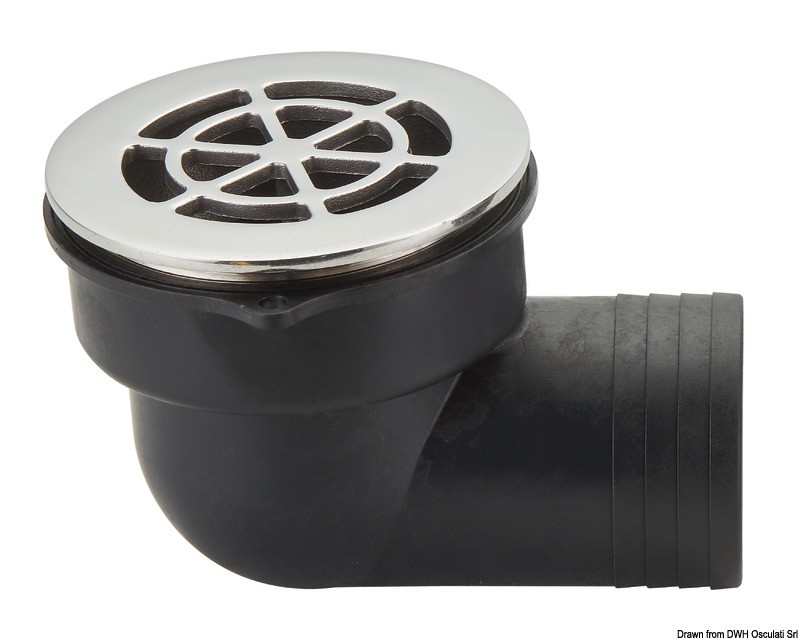

Osculati 90° Cockpit Drain with Check Valve, AISI 316 Stainless Steel Head

ID 1375103

$ 68.41

1-2 weeks delivery time

Diameter, mm:

The Osculati 90° Cockpit Drain is designed for marine drainage systems and features a reinforced acetyl fibre body combined with an AISI 316 stainless steel head. The integrated check flap helps prevent water backflow into the cockpit, while the compact 90° configuration simplifies hose installation. Available with 38 mm or 51 mm hose connections and an 87 mm head diameter.

Description
Ask a Question

Osculati 90° Cockpit Drain with Check Valve, AISI 316 Stainless Steel Head – 38 mm and 51 mm Hose Connection

The Osculati 90° Cockpit Drain is designed for efficient cockpit drainage and protection against water backflow. The unit combines a reinforced acetyl fibre body with an AISI 316 stainless steel head for durability in marine environments. An integrated check flap prevents reverse water flow, while the 90° outlet configuration allows convenient hose routing in confined spaces.

Key Features
- Reinforced acetyl fibre body.
- AISI 316 stainless steel head.
- Integrated check flap to prevent backflow.
- 90° outlet design for efficient hose routing.
- Suitable for cockpit drainage systems.
- Corrosion-resistant visible components.
- Available with two hose connection sizes.
Available Variants

Osculati Code Head Diameter Hose Connection

17.126.01 87 mm 38 mm

17.126.02 87 mm 51 mm

Applications
- Cockpit drainage systems.
- Self-draining cockpits.
- Sailing yachts.
- Motorboats.
- Marine deck drainage installations.
Construction

The drain features a reinforced acetyl fibre body for durability and reduced weight, combined with an AISI 316 stainless steel head for corrosion resistance. The integrated check flap helps prevent reverse water flow into the cockpit while maintaining effective drainage performance.
