ID
1311598
$ 786.25
1-2 weeks delivery time
-
+
This flame arrestor grid is built with a brass GMs 65 housing and a single new silver grid, designed to meet EN ISO 16852:2010 and ATEX 94/9 EC standards for explosion group IIB. It features an internal thread size of 1" and a passage diameter of 64 mm, with an opening ratio of about 40% open and 60% closed to ensure safety and durability.
- Description
- Ask a Question
-

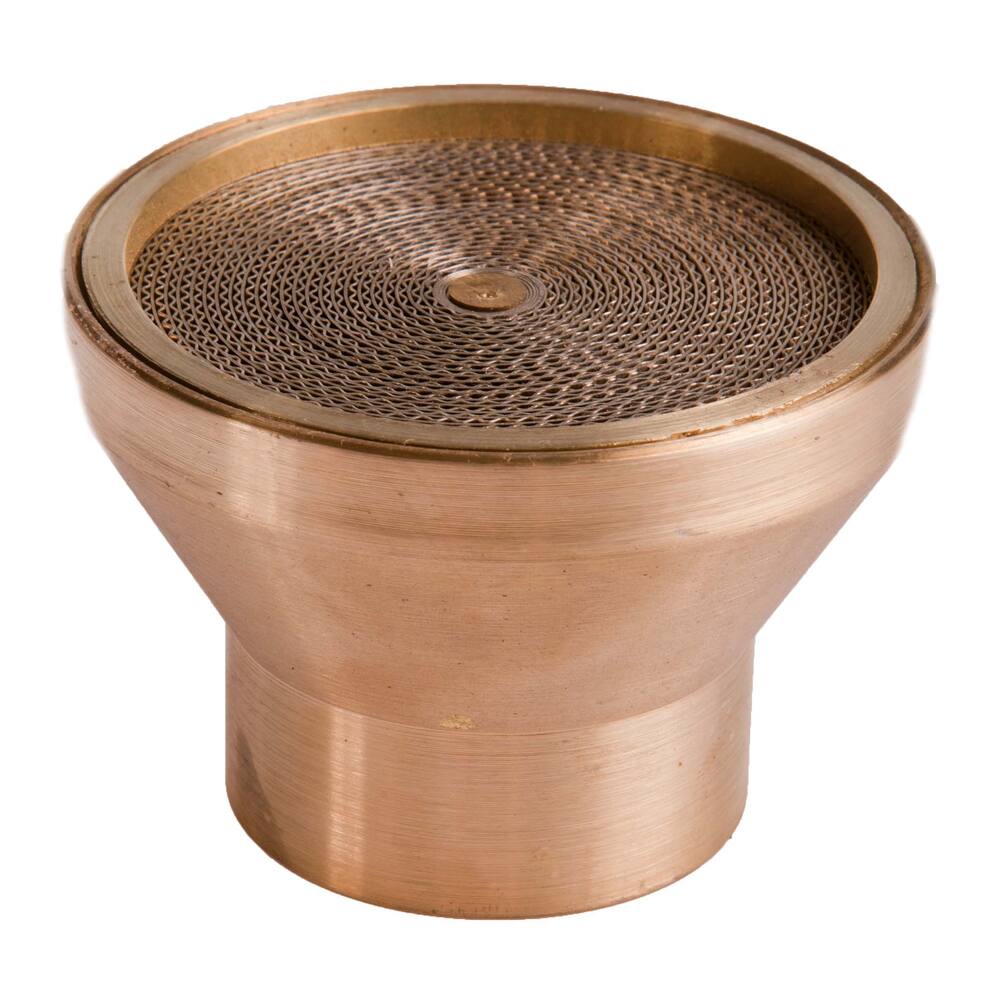

Flame Arrestor Grid Reducing Certified 1" Internal Thread
This flame arrestor grid is designed to meet the strict requirements of EN ISO 16852:2010 and ATEX 94/9 EC standards, suitable for explosion group IIB applications. It features a robust brass GMs 65 housing combined with a single new silver grid to ensure safety and durability.
- Housing material: brass GMs 65
- Grid type: single new silver grid
- Opening ratio: approximately 40% open / 60% closed
- Product code: 85.58.625
- Internal thread size: 1"
- Passage diameter: 64 mm
-
