ID
1311601
$ 908.79
1-2 weeks delivery time
-
+
The 2" internal thread flame arrestor grid is certified under EN ISO 16852:2010 and ATEX 94/9 EC for explosion group IIB, constructed with brass GMs 65 housing and a single new silver grid. It maintains the 40% open / 60% closed opening ratio and a 73 mm passage diameter for optimal flame arresting.
- Description
- Ask a Question
-

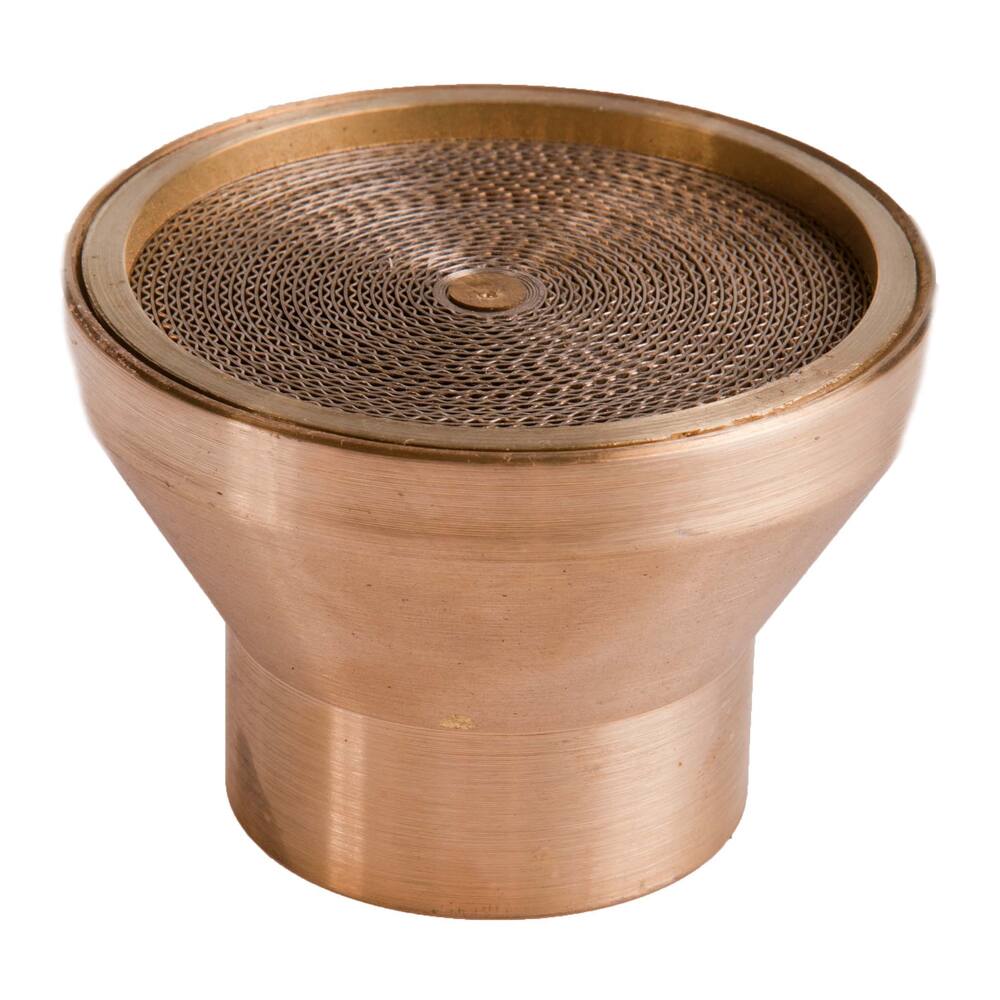

Flame Arrestor Grid Reducing Certified 2" Internal Thread
This flame arrestor grid is certified under EN ISO 16852:2010 and ATEX 94/9 EC for explosion group IIB. It includes a brass GMs 65 housing and a single new silver grid, designed to maintain an optimal opening ratio for flame arresting.
- Housing material: brass GMs 65
- Grid type: single new silver grid
- Opening ratio: approximately 40% open / 60% closed
- Product code: 85.58.650
- Internal thread size: 2"
- Passage diameter: 73 mm
-
