ID
976273
$ 2,819.95
1-2 weeks delivery time
-
+
The Vetus HL12500B Electro-Hydraulic Lifting System (article HL12500B) is a 12V stand-alone lifting solution delivering 320 kgf of lifting power and a 500 mm stroke. It is supplied complete with all necessary parts for easy installation, making heavy hatches, masts or radar arches effortless to operate.
- Description
- Ask a Question
-

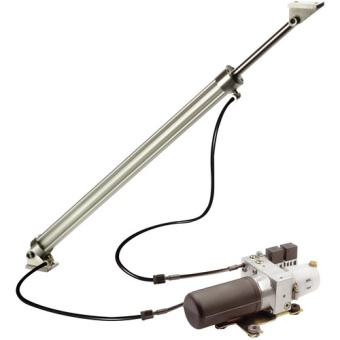

Vetus HL12500B Electro-Hydraulic Lifting System 12V, 500 mm Stroke, 320 kgf
The Vetus HL12500B electro-hydraulic lifting system provides strong and reliable lifting assistance for heavy hatches, radar arches or masts. It is fully stand-alone and includes all required hydraulic components, connectors and a waterproof control panel for quick and simple installation. If extra power is needed, two cylinders may be connected to one pump for increased lifting performance. The system is also suitable for folding bathing platforms on modern sailing vessels.
Model HL12500B Operating Voltage 12 V DC Stroke Length 500 mm Lifting Power 320 kgf System Type Stand-alone electro-hydraulic lifter Application Hatches, masts, radar arches, folding bathing platforms
System Components Included
- Seawater-resistant aluminum cylinder with stainless steel rod
- Electro-hydraulic pump
- Waterproof control panel
- 12 meters of hydraulic piping
- All required hose connectors
Main Features
- High lifting capacity: 320 kgf
- 500 mm actuation stroke for a wide range of hatch lifting applications
- Option to connect two cylinders to one pump for increased power
- Optional items available for dual-cylinder setup: oil reservoir (HTANK) and fitting kit (SLP7/1620)
- Designed for ease of use in pleasure craft installations
-
