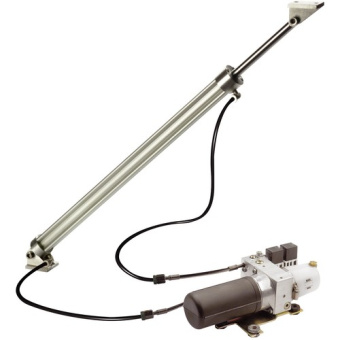

The Vetus HL12500A Electro-Hydraulic Lifting System (article HL12500A) enables effortless operation of heavy hatches, masts or radar arches. This 12V stand-alone system provides 125 kgf lifting power with a 500 mm stroke and is supplied complete with all necessary parts for installation.
- Description
- Ask a Question
-
Vetus HL12500A Electro-Hydraulic Lifting System 12V, 500 mm Stroke, 125 kgf
The Vetus HL12500A electro-hydraulic lifting system is designed to make opening heavy hatches or lowering masts and radar arches simple and reliable. The system is fully stand-alone and includes all required hydraulic components and a waterproof control panel for straightforward installation. If increased force is necessary, two cylinders can be connected to a single pump. It is also suitable for operating folding bathing platforms.
Model HL12500A Operating Voltage 12 V DC Stroke Length 500 mm Lifting Power 125 kgf System Type Stand-alone electro-hydraulic lifter Application Hatches, masts, radar arches, folding bathing platforms
System Components Included
- Seawater-resistant aluminum cylinder with stainless steel rod
- Electro-hydraulic pump
- Waterproof control panel
- 12 meters of hydraulic piping
- All required hose connectors
Main Features
- 125 kgf lifting capacity for heavy marine structures
- 500 mm stroke for wide actuation range
- Complete hydraulic system ready for installation
- Option to connect two cylinders to one pump for more lifting power
- Suitable for pleasure craft and modern marine installations
-
