Victron Energy Sun Inverters 12/24V IEC

€ 127,91

1-2 weeks delivery time
Price incl. 19% VAT

Voltage:

Electric power, W:

The Victron Sun Inverter 12/250 and 24/250 combine a pure sine wave inverter and a PWM solar charger into one compact, easy-to-install unit. Designed to power 230V AC loads from 12V or 24V leisure batteries, they also charge batteries via solar panels using a programmable PWM charger. With built-in Bluetooth, VE.Direct connectivity, and high startup power, the Sun Inverter is ideal for mobile and off-grid applications requiring reliable and efficient solar-powered AC supply.

Description
Ask a Question

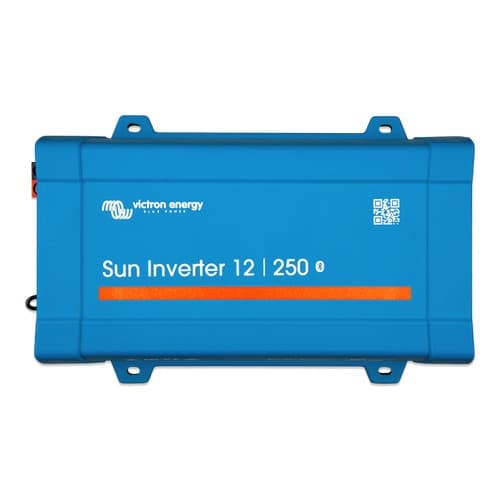

Victron Sun Inverter 12/250 & 24/250 – Pure Sine Wave + PWM Solar Charger

The Victron Energy Sun Inverter 12/250 & 24/250 is an all-in-one inverter and PWM solar charger designed for simple, efficient off-grid and mobile power solutions. It delivers 250VA of continuous pure sine wave AC output while also managing solar charging of 12V or 24V batteries. With integrated Bluetooth and a VE.Direct communication port, the system is easy to configure and monitor using the VictronConnect app or GX devices.

Key Features:

All-in-One Solution: Combines a sine wave inverter and a PWM solar charger in one enclosure.
Pure Sine Wave Output: Safe for sensitive electronics and all household appliances.
PWM Solar Charging: Supports 36-cell (12V) or 72-cell (24V) panel configurations with programmable charging logic.
High Startup Power: Capable of starting loads like LED lamps, halogen lamps, or electric tools.
Bluetooth Built-In: Allows monitoring and configuration via the VictronConnect app.
VE.Direct Port: For connection to GX devices or GlobalLink 520 for remote monitoring.
ECO Mode: Reduces power consumption during low load conditions with auto wake-up.
Compact Design: Lightweight, fan-cooled, and easy to install with screw terminal connections.

Technical Specifications:

Parameter	12V Model	24V Model
Continuous Power (25°C)	250 VA	250 VA
Power at 40°C / 65°C	200 W / 175 W	200 W / 175 W
Peak Power	400 W	400 W
Input Voltage Range	9.2 – 17 V DC	18.4 – 34 V DC
Max Efficiency	87%	88%
Zero Load Power	4.2 W	5.2 W
ECO Mode Power	0.8 W	1.3 W
Solar Charger Type	PWM (Pulse Width Modulation)
Max PV Voltage	25 V	50 V
Max PV Current / Power	15 A / 375 W	10 A / 500 W
Solar Panel Type	36-cell	72-cell or two 36-cell in series
Protection Features	Short circuit, overload, over/under voltage, over temperature, DC ripple
Bluetooth	Built-in
VE.Direct Port	Yes
Operating Temperature	-40°C to +60°C
Humidity (non-condensing)	Max 95%
Dimensions (h × w × d)	86 × 165 × 260 mm
Weight	2.4 kg
AC Output	IEC-320 socket (plug included)
Protection Class	IP21

Compliance & Certifications:

Safety: EN-IEC 60335-1 / EN-IEC 62109-1
EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / -6-3
Automotive Directive: ECE R10-4 / EN 50498

Recommended Accessories:

Victron Filax Automatic Transfer Switch
Smart Battery Sense or temperature sensor for charging temp compensation
BMV or SmartShunt Battery Monitors
Phoenix Inverter Control VE.Direct Remote Panel
GX Devices (e.g. Cerbo GX) or GlobalLink 520 for remote monitoring

The Victron Sun Inverter 12/250 and 24/250 offers an ideal solution for compact solar-powered AC systems where space and simplicity are crucial. With integrated charging, monitoring, and smart energy features, it’s a plug-and-play choice for off-grid and mobile energy needs.

Documents

Victron Energy Sun Inverters 12:24V IEC Size: 379,6 Kb
