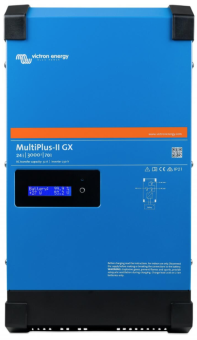

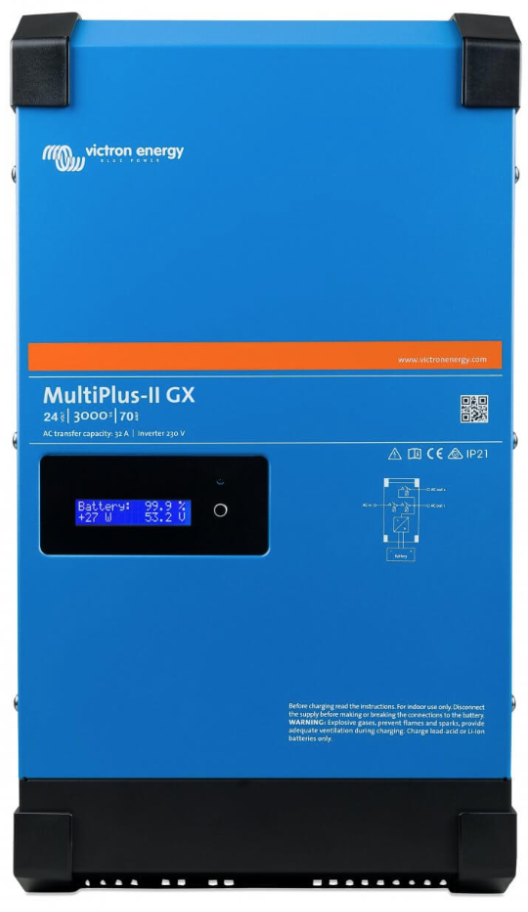

Victron Energy MultiPlus-II GX Inverter/Charger 24/48V

€ 1.206,15

1-2 weeks delivery time
Price incl. 19% VAT

Voltage:

Electric power, W:

3000
5000

Current (Amps):

The Victron MultiPlus-II GX series combines powerful inverter/charger performance with built-in system monitoring and control via an integrated GX device. Available in 24V and 48V models with power ratings of 3000 VA to 5000 VA, these units support PowerAssist, remote monitoring, solar optimization, and full ESS integration. Ideal for off-grid, grid-tied, or mobile applications.

Description
Ask a Question

Victron Energy MultiPlus-II GX Inverter/Charger Series integrates the robust MultiPlus-II platform with an internal GX device and display for real-time monitoring and full system control. These inverter/chargers are ideal for off-grid, grid-connected ESS systems, and mobile installations requiring both high performance and advanced connectivity.

Key Features:

Integrated GX device – includes display, BMS-Can, VE.Direct, USB, Ethernet, and Wi-Fi for real-time control.
Pure sine wave inverter – stable 230V AC output, compatible with all sensitive devices.
PowerAssist and PowerControl – prevents overloads and manages AC input limitations.
ESS (Energy Storage Systems) – enables advanced hybrid solar + battery + grid control with dynamic switching.
Dual AC output – critical loads remain powered during outages.
Remote monitoring – via VRM Portal, VictronConnect, or mobile apps with optional GX GSM modem.

Model Overview:

Model	Battery Voltage	Cont. Power (W)	Apparent Power (VA)	Charger Current (A)	Transfer Switch	Dimensions (mm)	Weight
PMP242306000	24 V	2400 W	3000 VA	70 A	32 A	506 x 275 x 147	20 kg
PMP482306000	48 V	2400 W	3000 VA	35 A	32 A	506 x 275 x 147	20 kg
PMP482506000	48 V	4000 W	5000 VA	70 A	50 A	565 x 323 x 148	31 kg

Technical Highlights:

DC input range: 24V models: 19–33 V; 48V models: 38–66 V
AC input: 187–265 VAC, 45–65 Hz
Output voltage: 230 VAC ±2%, 50 Hz ±0.1%
Peak power: up to 9000 W
Efficiency: 94–96%
Zero load consumption: 11–18 W (Search mode: 2–3 W)
Battery charging: Adaptive 3/4-stage with temperature compensation
Monitoring interfaces: BMS-Can, VE.Direct, USB, Ethernet, Wi-Fi

Advanced System Capabilities:

Parallel and 3-phase support (only one GX device needed)
Programmable relay for automation, alarms, generator start/stop
Supports external current sensors (50 A or 100 A) for PowerAssist/PowerControl
Compatible with lithium, AGM, GEL, and lead-acid battery chemistries
Fan-cooled operation: -40°C to +65°C, IP22 steel enclosure (RAL 5012)

These GX models are an all-in-one solution for high-end power systems, offering seamless integration with Victron components, real-time data, and robust performance in any environment.

Manufacturer: Victron Energy, The Netherlands
