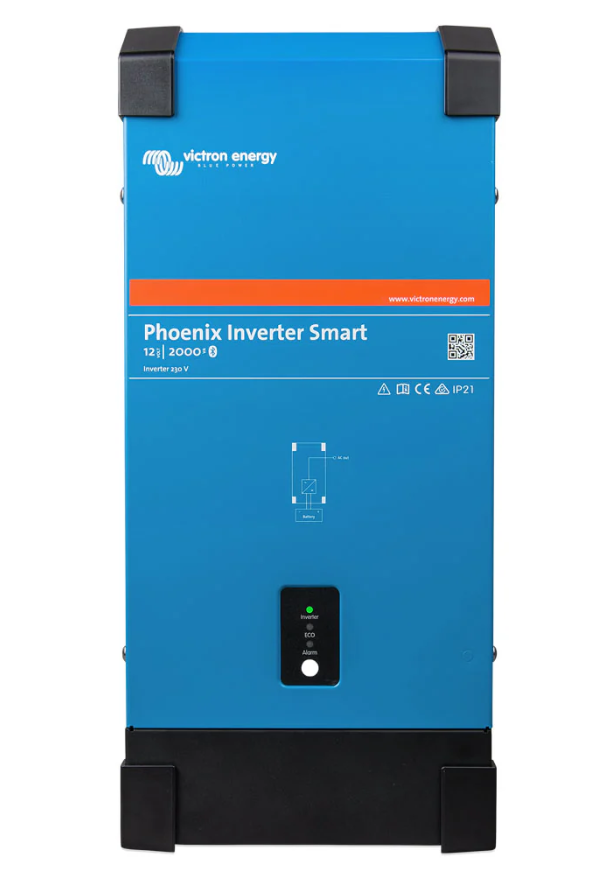

Victron Energy Inverter Smart 1600VA - 5000VA 12/24/48V

Victron Energy Inverter Smart 1600VA–5000VA | 12/24/48V

The Victron Energy Inverter Smart series combines high performance and flexibility in a robust, slimline design. Available in 12V, 24V, and 48V configurations, these inverters deliver continuous pure sine wave output of 1600W to 5000W, with peak capacities up to 10,000W, making them suitable for demanding AC loads such as tools, appliances, and electronics.

Equipped with Bluetooth and VE.Direct communication, users can configure and monitor the inverter via the VictronConnect app or computer. Smart inverters support custom parameters like dynamic low voltage shutdown, output frequency, ECO mode, and relay functions. The design features a toroidal transformer for stable voltage and high peak power, and the metal enclosure ensures durability in tough environments.

Key Features:

• Pure Sine Wave Output: Safe for sensitive electronics and appliances.
• Bluetooth Built-In: Configure alarms, voltage limits, frequency, ECO mode, and more via VictronConnect app.
• VE.Direct Port: USB or GX device integration for monitoring and control.
• High Peak Power: Up to 10,000W surge handling for inductive loads.
• Programmable Relay: Use for alarms, genset control, or system events.
• Dynamic Cut-Off: Load-dependent battery low voltage shutdown protects system integrity.
• ECO Mode: Reduces idle power draw by entering standby when load is low.
• Remote On/Off: Supports integration with switches or vehicle ignition logic.

Model Specifications:

Physical and Electrical Details:

• AC Output: 230V ±2%, 50/60 Hz selectable
• Input Voltage Ranges: 12V (9.3–17V), 24V (18.6–34V), 48V (37.2–68V)
• Enclosure: Steel housing, blue (RAL 5012) or black (RAL 9017)
• Protection Rating: IP21
• Cooling: Fan-assisted
• Operating Temperature: -40°C to +65°C
• Humidity: Max 95% (non-condensing)
• Weight: 12–29 kg depending on model
• Dimensions (H × W × D):
  - 1600–2000VA: 485 × 219 × 125 mm
  - 3000VA: 533 × 285 × 150 mm (12V) / 485 × 285 × 150 mm (24/48V)
  - 5000VA: 595 × 295 × 160 mm (24V) / 555 × 295 × 160 mm (48V)

Standards and Certifications:

• Safety: EN 60335-1
• EMC: EN 55014-1 / EN 55014-2 / EN-IEC 61000-6 series
• Automotive Directive: ECE R10-5

Compatible Accessories:

• Victron Inverter Control Panel
• BMV-712 Smart Battery Monitor
• VE.Direct to USB Interface
• Victron GX Devices (e.g. Cerbo GX)
• Filax Automatic Transfer Switch

The Victron Inverter Smart series combines powerful performance with smart connectivity and easy configuration, making it the perfect choice for professional and recreational power systems requiring high surge capability, reliability, and remote monitoring options.
