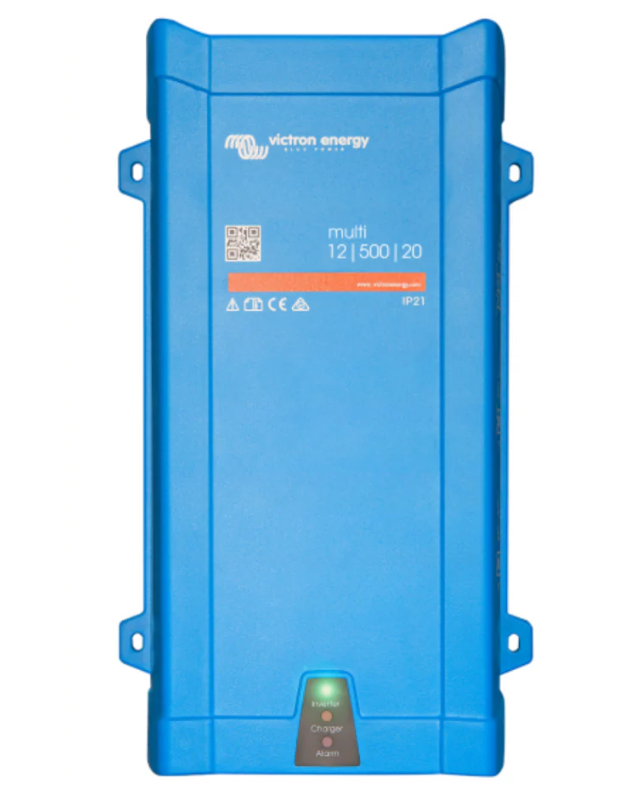

Victron Energy MultiPlus Inverter/Charger 12/24/48V

€ 370,26

1-2 weeks delivery time
Price incl. 19% VAT

Voltage:

Electric power, W:

500
800
1200
1600
2000
3000
5000

Current (Amps):

6
9
10
13
16
20
25
35
40
50
120 (Relay 16A)
120 (Relay 50A)
70 (Relay 16A)
70 (Relay 50A)
35 (Relay 16A)
35 (Relay 50A)
70
80
120

The Victron Energy MultiPlus is a powerful, intelligent inverter/charger available in 12V, 24V, and 48V configurations with output power ranging from 500VA to 5000VA. Designed for advanced energy systems, it combines a true sine wave inverter, adaptive battery charging, a high-speed transfer switch, and PowerAssist technology in one compact unit. With seamless UPS functionality, parallel and three-phase capability, and full integration via VE.Bus and remote VRM access, the MultiPlus is ideal for both off-grid and grid-interactive applications.

Description
Ask a Question

Victron MultiPlus Inverter/Charger 12V / 24V / 48V – 500VA to 5000VA

The Victron Energy MultiPlus is a multifunctional inverter and charger that combines pure sine wave power conversion and intelligent charging with PowerAssist technology and high-speed transfer switching. This all-in-one unit is designed for marine, mobile, off-grid, and backup systems, offering advanced features and outstanding reliability for continuous and uninterrupted power delivery.

Key Features:

True Sine Wave Inverter: Clean, stable power for sensitive electronics and household appliances.
Advanced Battery Charging: Adaptive four-stage charging with temperature compensation.
Uninterrupted AC Power: Instant switchover (< 20 ms) during grid failure or disconnection.
PowerAssist: Supports and boosts generator or shore power with battery energy during peak loads.
Parallel and 3-Phase Ready: Up to 6 units can operate in parallel or be configured for split/3-phase systems.
Dual AC Outputs: Main output with UPS function and auxiliary output active only with AC input (≥3kVA models).
Remote Monitoring & Control: Full integration with GX devices and the VRM portal.
VE.Bus Communication: Enables advanced system configuration, monitoring, and expansion.

Available Models (Selection):

Model	Battery Voltage	Inverter Power (VA)	Charger Current (A)	Transfer Switch
PMP121500000	12V	500	20	16 A
PMP122160000	12V	1600	70	16 A
PMP123021010	12V	3000	120	50 A
PMP242160000	24V	1600	40	16 A
PMP245021010	24V	5000	120	100 A
PMP482160000	48V	1600	20	16 A
PMP485021010	48V	5000	70	100 A

Inverter Specifications:

Output voltage: 230 VAC ±2%
Frequency: 50 Hz ±0.1%
Peak power: up to 10,000 W (depending on model)
Max efficiency: up to 95%
Zero load consumption: from 8W (AES mode available)

Charger Specifications:

AC Input: 187–265 VAC, 45–65 Hz
Charging voltage (absorption): 14.4 / 28.8 / 57.6 VDC
Charging voltage (float): 13.8 / 27.6 / 55.2 VDC
Storage mode: 13.2 / 26.4 / 52.8 VDC
Starter battery charge: 4 A (12V & 24V models)

Additional Features:

Programmable relay for alarms or genset control
VE.Bus, VE.Configure, and VRM portal integration
Remote On/Off, temperature sensor support
Compatible with lithium and lead-acid battery systems
Operating temp: -40°C to +65°C, fan assisted

Dimensions & Weight:

Dimensions: varies by model (e.g. 362 × 258 × 218 mm for 3kVA)
Weight: ranges from 10 kg to 30 kg

Certifications:

EN-IEC 60335-1 / -2-29, IEC 62109-1
EMC: EN 55014-1 / -2, IEC 61000-6 series
Vehicle Directive: ECE R10-4 (for 12V/24V models)

Whether for marine, mobile, backup, or hybrid energy systems, the Victron MultiPlus Inverter/Charger delivers unmatched reliability, smart power management, and expandability for the most demanding applications.
