ID
1340154
$ 1,217.51
1-2 weeks delivery time
-
+
Cristec UEYPOPL/12-30/2D delivers integrated AC distribution and intelligent 12 V charging in a compact cabinet, featuring fanless silent operation, automatic battery adaptation, and remote monitoring support.
- Description
- Ask a Question
-

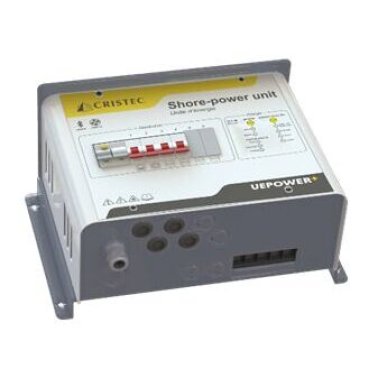

Cristec UEYPOPL/12-30/2D - Uepower+ 12V 30A Power Unit - 2 Feeders
The Cristec UEPOWER+ 12V 30A power unit offers a compact and comprehensive solution for onboard AC and DC power management. By integrating advanced YPOWER+ charging electronics with automatic feeders, it simplifies installation while ensuring dependable performance.
With a fanless design using natural convection, the unit operates completely silently. Enhanced user protection is provided by a two-pole residual current device and individually protected feeders. Intelligent electronics allow automatic adaptation to various battery technologies.
Key Features
- Integrated AC distribution with automatic feeders
- Silent fanless operation
- Four independent charger outputs, including engine battery
- Auto-sensing wide-range AC input 90–265 V, 47–65 Hz
- Remote monitoring and control via Bluetooth BLE, CAN-Bus, and optional NMEA
- 5-step intelligent charging profile
Technical Specifications
Rated Current 30 A Output Tension 12 V Input Frequency 50 / 60 Hz Intensity 16 A Ingress Protection IP20 Decibel Level 0 dB Height 241 mm Length 350 mm Width 171 mm Depth 171 mm Number Of Outputs 3 Thread 4 x M5 Weight 7 kg
Brand: Cristec
Article Code: UEYPOPL/12-30/2D -
