Cristec UEYPOPL/12-20/2D is an all-in-one 12 V power unit combining AC distribution, automatic feeders, and intelligent charging electronics, offering silent operation, advanced battery management, and compact installation.
- Description
- Ask a Question
-

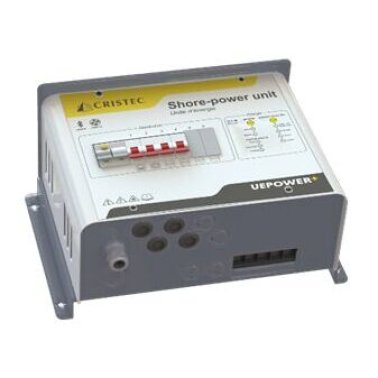

Cristec UEYPOPL/12-20/2D - Uepower+ 12V 20A Power Unit - 2 Feeders
The Cristec UEPOWER+ power units are engineered to provide a complete, compact, and intelligent onboard power management solution. Designed to optimize space and reduce installation time, this all-in-one cabinet integrates AC distribution and automatic feeders with the latest YPOWER+ charging electronics for high performance and long-term reliability.
User safety is reinforced by a two-pole residual current device and individually protected feeders. Thanks to its onboard intelligence, the unit automatically adapts to different battery technologies and the requirements of modern electrical systems. Natural convection cooling ensures completely silent operation, making it ideal for marine and professional installations.
Key Features
- All-in-one cabinet with AC distribution and integrated automatic feeders
- Fanless design with natural convection for silent operation
- Four independent charger outputs, including one dedicated to the engine battery
- Worldwide compatibility with auto-sensing 90–265 V AC, 47–65 Hz
- Remote control via Bluetooth BLE, CAN-Bus, and optional NMEA interface
- Advanced 5-step charging profile for optimal battery care
Technical Specifications
Rated Current 20 A Output Tension 12 V Input Frequency 50 / 60 Hz Intensity 16 A Ingress Protection IP20 Decibel Level 0 dB Height 171 mm Length 350 mm Width 241 mm Depth 171 mm Number Of Outputs 3 Thread 4 x M5 Weight 7 kg
Brand: Cristec
Article Code: UEYPOPL/12-20/2D -
