ID
1305835
$ 39.58
1-2 weeks delivery time
-
+
A high-capacity busbar with 4 M10 pins, fiberglass-reinforced nylon base and casing, removable windows, and nickel-plated brass bus, supporting 300A continuous at 48VDC, dimensions A138 x B78 x C50 mm.
- Description
- Ask a Question
-

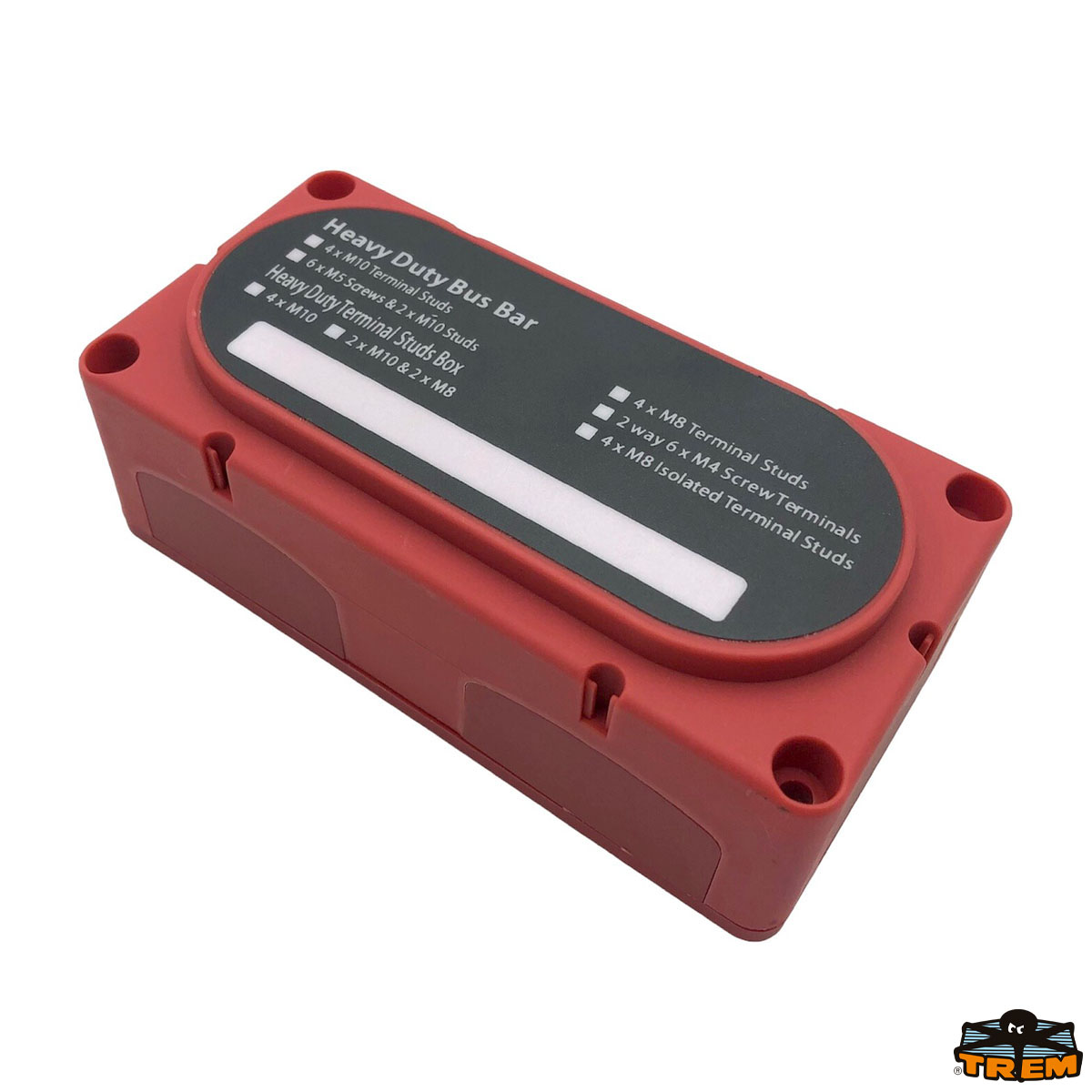

Trem L0648138 - Busbar For High Amperage Terminals 4 Pins
A high-capacity busbar engineered for demanding electrical setups.
- BUSBAR fitted with M10 terminal studs rated for 300A
- Designed for straightforward wiring and strong performance
- Base and casing made of fiberglass-reinforced nylon for durability

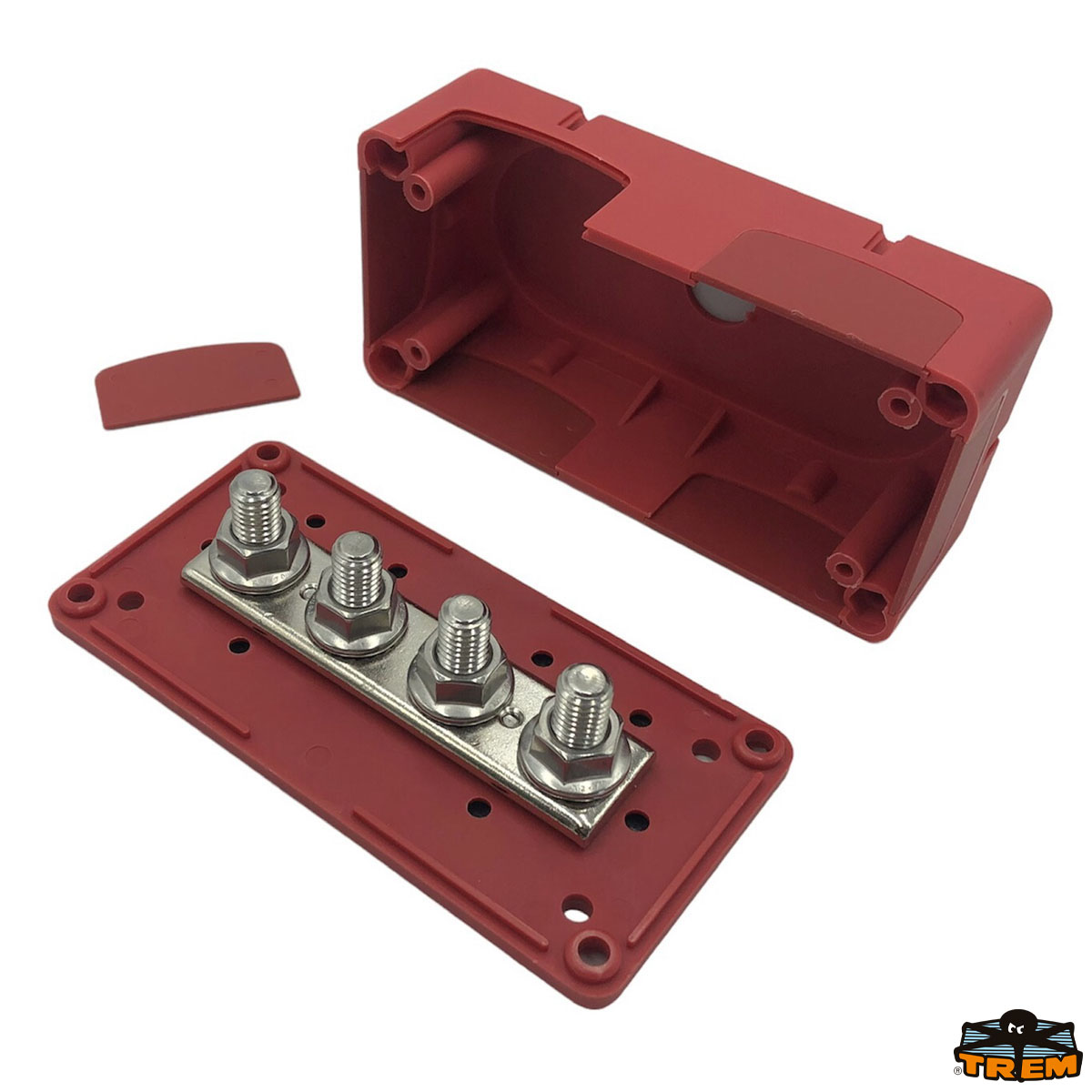

- Removable windows allow clear wiring access
- Top area provides blank space for branch labeling
- Base & Cover Material: nylon reinforced with fiberglass
- Bus Material: nickel-plated brass
- Maximum operating voltage: DC 48V
- Continuous amperage: 300A
- Weight: 0,350 Kg

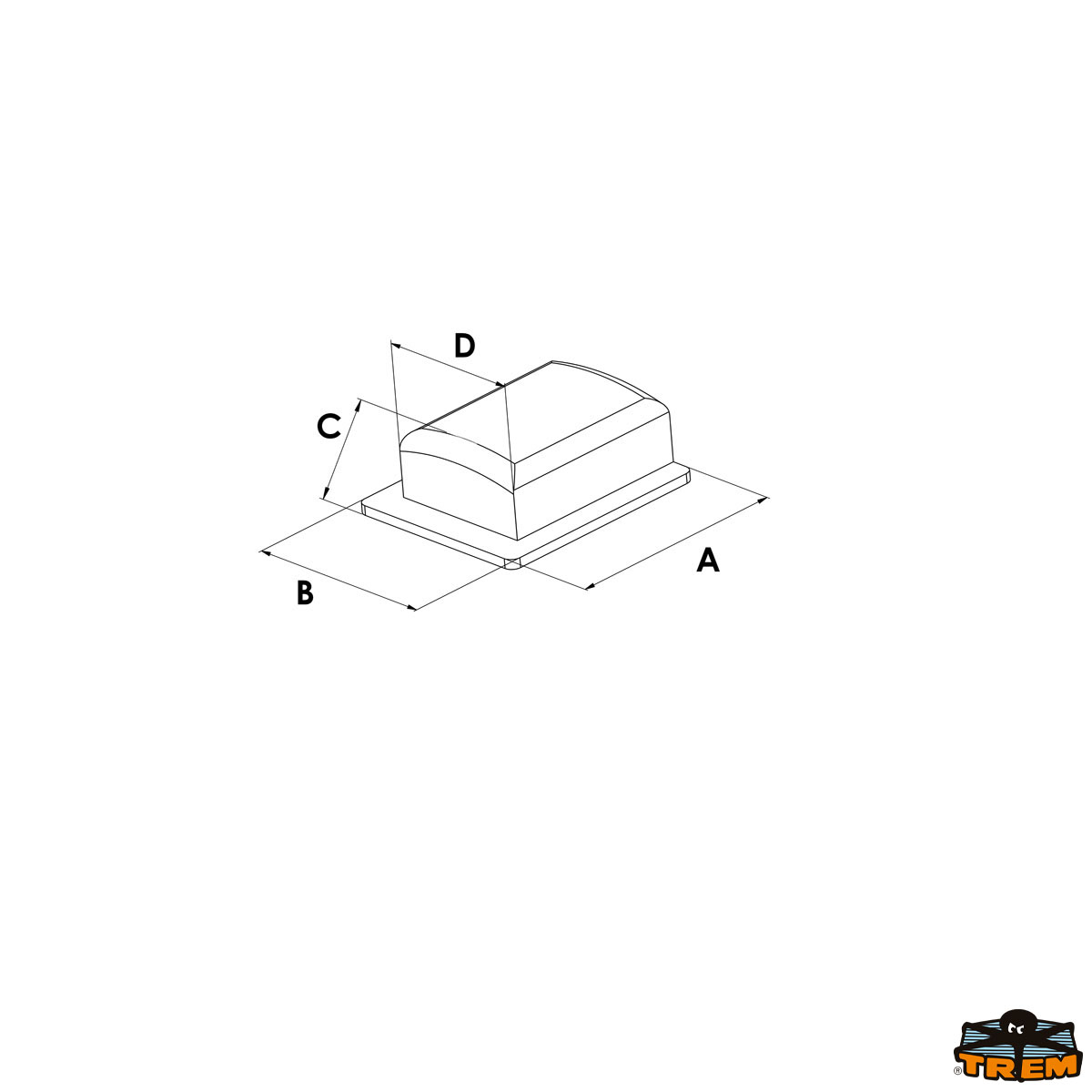

- Dimensions: A138 x B78 x C50 mm
- Centre distance: 73 x 70 mm
- Contacts: 4
- Brand: Electra
- EAN: 8024827789568
-
