ID
1305836
$ 51.22
1-2 weeks delivery time
-
+
A multi-connection busbar designed for high amperage terminals, providing multiple points for secure power links with a protective plastic cover and nickel-plated brass contacts. Rated for 250A at 12Vdc, it features 4+4 end pins, measures 135 x 84 x 40 mm, and weighs 0,350 kg.
- Description
- Ask a Question
-

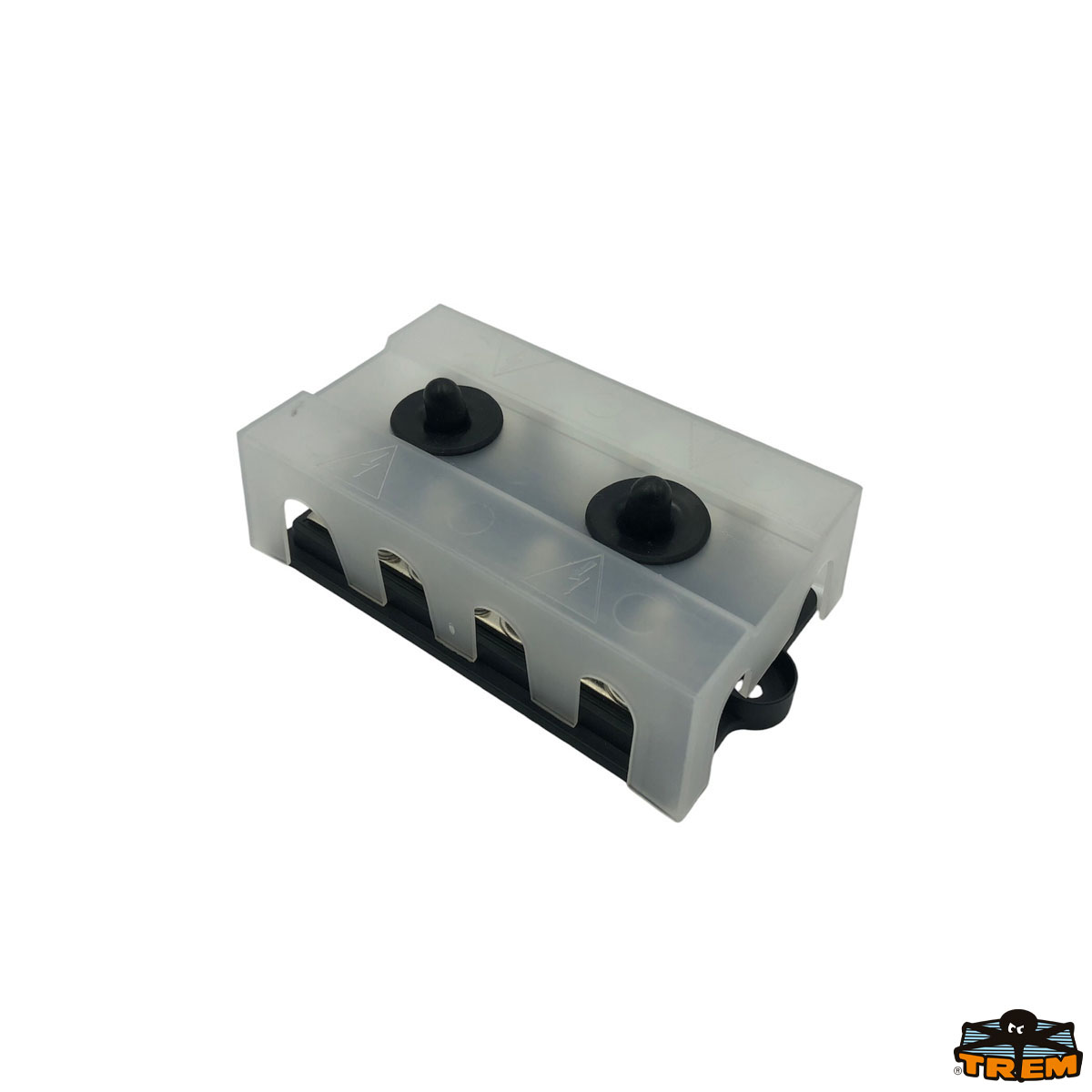

Trem L0648135 - Busbar For High Amperage Terminals 4+4 Pins
A multi-connection busbar suited for setups requiring several power links with reliable protection.

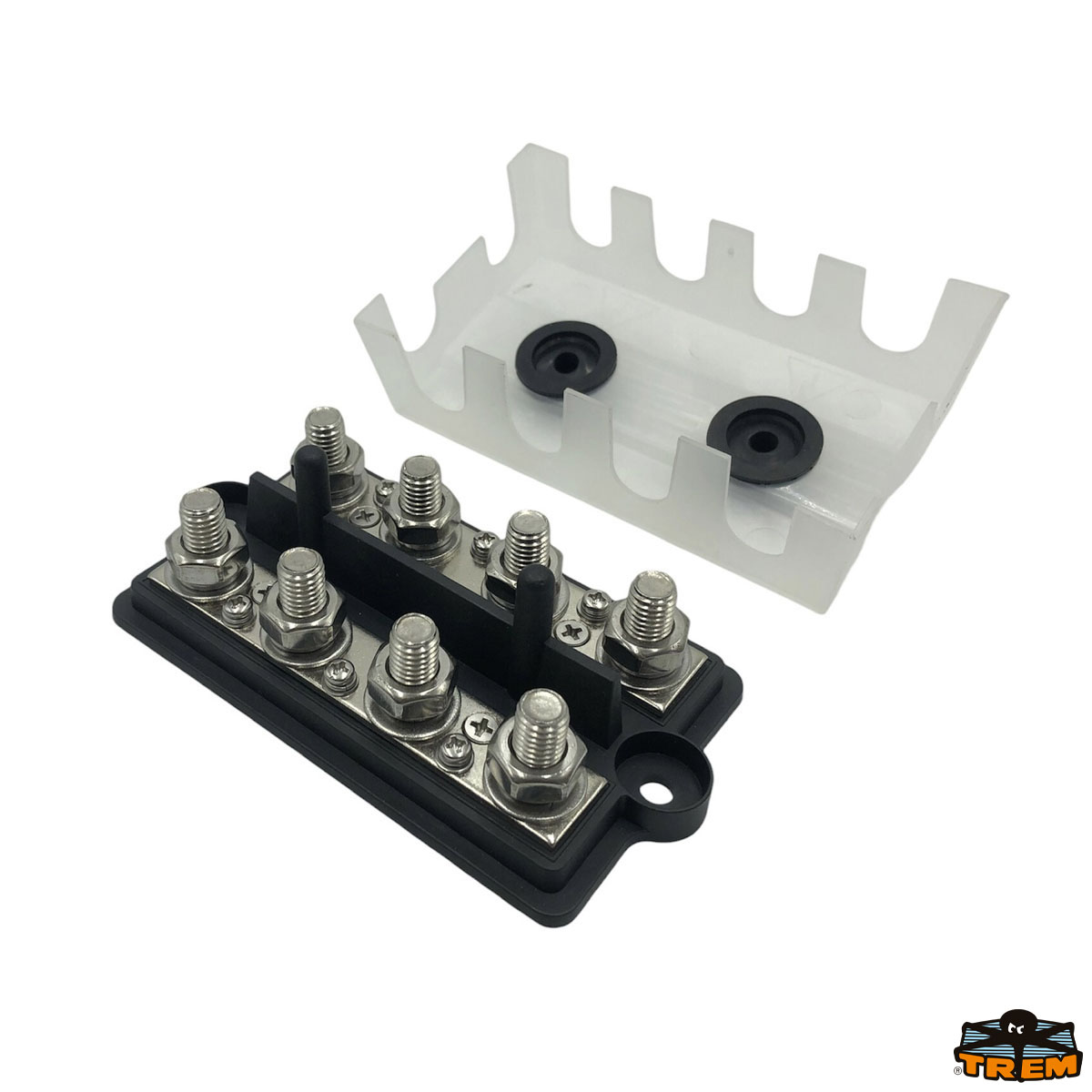

- Provides multiple connection points with protective plastic cover
- Nickel-plated brass contact plate for high current and corrosion resistance
- Maximum amperage: 250A at 12Vdc per connection (upright sizes)
- Maximum voltage: 48Vdc
- End pins: 4 x M10 + 4 x M10
- Weight: 0,350 Kg

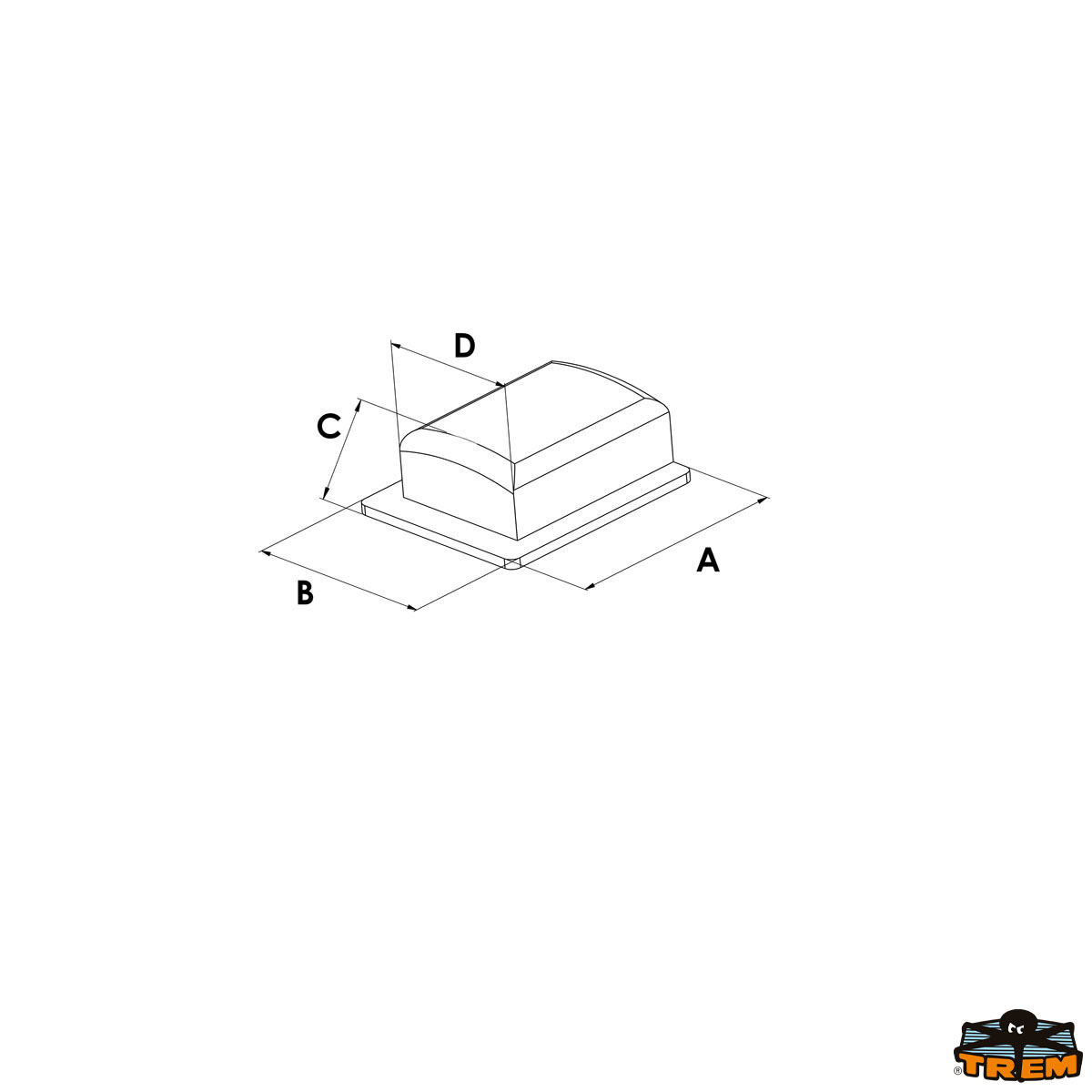

- Dimensions: A135 x B84 x C40 mm
- Centre distance: 125 mm
- Contacts: 4+4
- Brand: Electra
- EAN: 8024827789544
-
