Ripca ANL 250A fuse is a ceramic and copper DC (VDC) fuse for reliable overcurrent protection in 12 / 24 / 36 / 48 / 72 / 125 V systems. It includes a 60 mm bolt distance, measures 82 mm x 22 mm, comes in white, and is supplied per piece (Article code: ANL250, Barcode: 8712734174842).
- Description
- Ask a Question
-

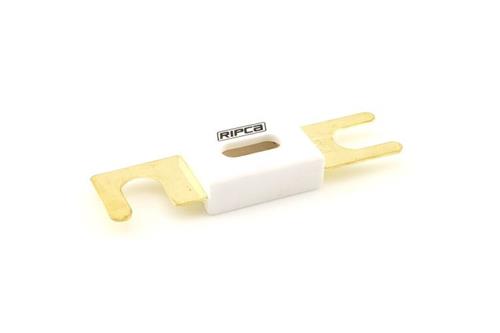

Ripca Fuse ANL 250A
The Ripca ANL 250A fuse is designed for DC (VDC) applications. Made from ceramics and copper, this ANL fuse offers reliable overcurrent protection. Bolt distance center to center is 60 mm.
Main Features
- Current: 250A
- Type Voltage: VDC
- Voltage: 12 / 24 / 36 / 48 / 72 / 125 V
- Material: Ceramics and Copper
- Color: White
- Bolt Distance H.o.H.: 60 mm
- Sales Unit: 1 piece
Technical Data

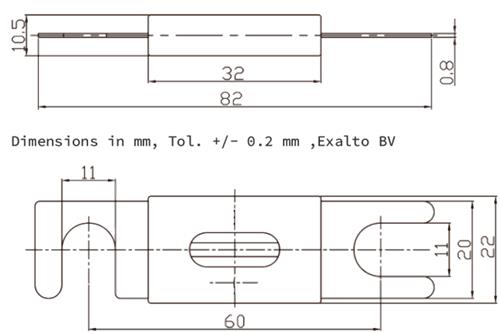

Length 82 mm Width 22 mm Current 250 A Voltage 12 / 24 / 36 / 48 / 72 / 125 V Type Voltage VDC Bolt Distance H.o.H. 60 mm Material Ceramics / Copper Color White Sales Unit 1
Brand: Ripca (Article code: ANL250) (Barcode: 8712734174842)
-
