Ripca ANL 200A fuse is a ceramic and copper DC (VDC) fuse designed for overcurrent protection in 12 / 24 / 36 / 48 / 72 / 125 V installations. It features a 60 mm bolt distance, dimensions of 82 mm x 22 mm, white finish, and is supplied per piece (Article code: ANL200, Barcode: 8712734174859).
- Description
- Ask a Question
-

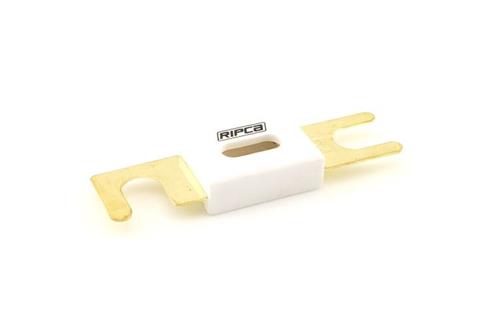

Ripca Fuse ANL 200A
The Ripca ANL 200A fuse is a ceramic and copper fuse for DC (VDC) systems. This ANL fuse protects electrical installations against overcurrent. The bolt distance center to center is 60 mm.
Main Features
- Current: 200A
- Type Voltage: VDC
- Voltage: 12 / 24 / 36 / 48 / 72 / 125 V
- Material: Ceramics and Copper
- Color: White
- Bolt Distance H.o.H.: 60 mm
- Sales Unit: 1 piece
Technical Data

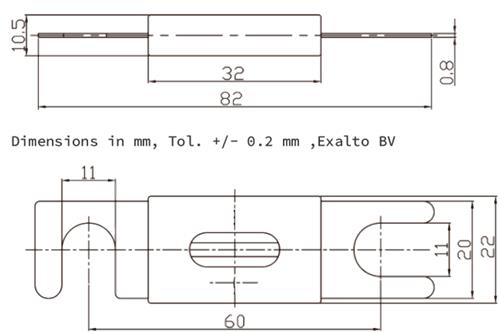

Length 82 mm Width 22 mm Current 200 A Voltage 12 / 24 / 36 / 48 / 72 / 125 V Type Voltage VDC Bolt Distance H.o.H. 60 mm Material Ceramics / Copper Color White Sales Unit 1
Brand: Ripca (Article code: ANL200) (Barcode: 8712734174859)
-
