Viadana Small Block with Stainless Steel Vertical Bracket and Nylon Sheave for 4-8 mm Rope, 25 mm Sheave

ID 1391415

$ 8.84

1-2 weeks delivery time

Diameter, mm:

Viadana Small Single Lead Blocks are compact rope-guiding blocks designed for sailing and marine control-line installations. They combine a stainless steel vertical bracket with a 25 mm nylon sheave for efficient line guidance in confined spaces. The range covers ropes from 4 to 8 mm and includes Osculati articles 55.063.04, 55.063.06 and 55.063.08 together with Viadana references 15.13, 15.12 and 15.11.

Description
Ask a Question

Viadana Small Single Lead Blocks with Stainless Steel Vertical Bracket and 25 mm Nylon Sheave for 4-8 mm Rope - Osculati 55.063.04 / 55.063.06 / 55.063.08

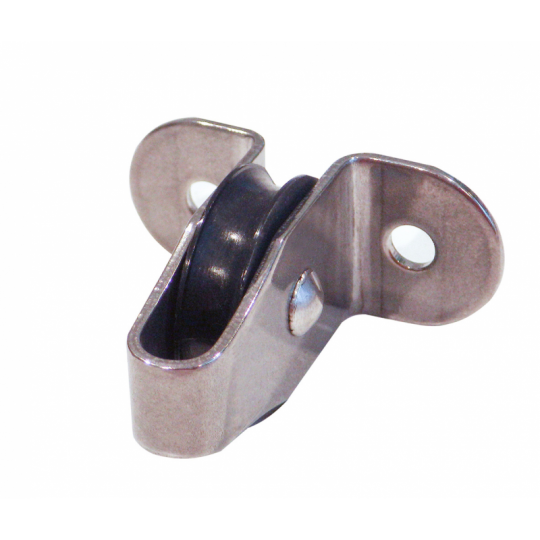

Viadana Small Single Lead Blocks are compact marine pulley blocks designed to guide ropes and control lines where installation space is limited. Their simple single-sheave configuration makes them suitable for routing lines in sailing and general deck rigging systems.

The blocks use a stainless steel vertical mounting bracket combined with a 25 mm nylon sheave. This compact construction provides a practical solution for changing or controlling the direction of a rope while keeping the installation close to the mounting surface.

The range includes three main size variants covering ropes from approximately 4 to 8 mm. The smallest version is listed as 4 mm in the Osculati catalogue and 5 mm under Viadana article 15.13 / FNI 7878714. The remaining variants correspond to 6 and 8 mm ropes.

Product Features
- Brand: Viadana
- Product type: Small single lead block
- Configuration: Single sheave
- Bracket: Stainless steel vertical bracket
- Sheave material: Nylon
- Sheave diameter: 25 mm
- Rope size range: 4-8 mm
- Application: Rope and control-line guidance in compact marine installations
Available Variants

Rope Diameter Sheave Diameter Viadana Article Osculati Code FNI Product Number

4-5 mm 25 mm 15.13 55.063.04 7878714

6 mm 25 mm 15.12 55.063.06 7878716

8 mm 25 mm 15.11 55.063.08 7878718

Rope Diameter	Sheave Diameter	Viadana Article	Osculati Code	FNI Product Number
4-5 mm	25 mm	15.13	55.063.04	7878714
6 mm	25 mm	15.12	55.063.06	7878716
8 mm	25 mm	15.11	55.063.08	7878718
