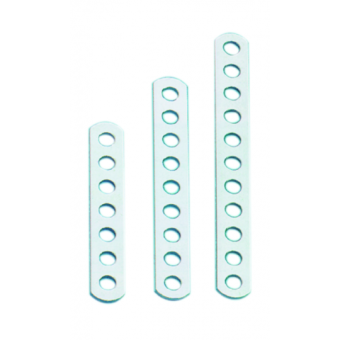

Viadana AISI 316 Stainless Steel Hollow Chain Plates, 80-1000 mm

ID 1391515

$ 3.26

1-2 weeks delivery time

Length, mm:

80
100
120
1000

Viadana Hollow Chain Plates are stainless steel rigging fittings designed to provide strong and reliable attachment points in sailboat standing-rigging systems. Manufactured from AISI 316 stainless steel, the range includes compact 80, 100 and approximately 120-125 mm versions as well as a long 1000 mm plate. The smaller models use a 14 x 2 mm section with Ø6 mm holes, while the 1000 mm Viadana version has a heavier 19 x 2.5 mm section with Ø8 mm holes. The range includes Viadana articles 37.02, 37.03, 37.04 and 37.05 together with Osculati codes 58.506.10, 58.506.11, 58.506.12 and 58.506.15.

Description
Ask a Question

Viadana AISI 316 Stainless Steel Hollow Chain Plates, 80-1000 mm - Viadana 37.02 / 37.03 / 37.04 / 37.05 - Osculati 58.506.10 / 58.506.11 / 58.506.12 / 58.506.15

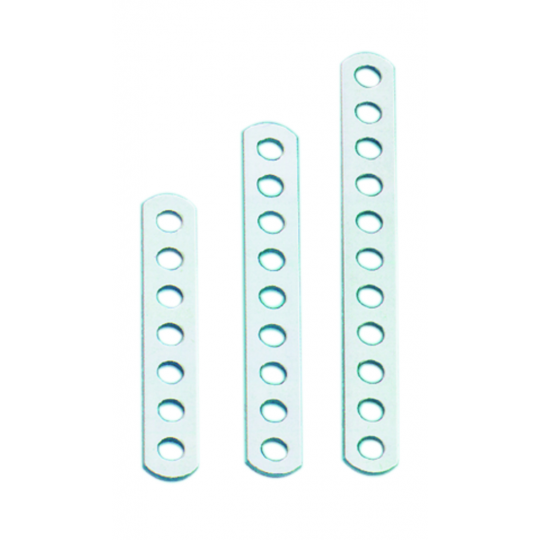

Viadana Hollow Chain Plates are traditional stainless steel rigging fittings designed for securing and supporting standing-rigging connections on sailing boats. Their elongated perforated construction provides multiple attachment possibilities and makes them suitable for installations where the rigging connection position needs to be selected or adjusted along the plate.

The range is manufactured from AISI 316 stainless steel, providing the strength and corrosion resistance required for exposed marine applications. The shorter versions use a compact 14 x 2 mm strip section with Ø6 mm holes and are available in several lengths for different rigging layouts. A longer 1000 mm version is also available for installations requiring a substantially extended chain plate.

The 80 mm model is identified as Viadana article 37.02 and Osculati 58.506.10, while the 100 mm version corresponds to Viadana 37.03 and Osculati 58.506.11. The next size is listed as 120 mm under Viadana article 37.04 and 125 mm under Osculati 58.506.12. These catalogue-specific dimensional references are retained in the specifications below.

The 1000 mm model is identified as Viadana article 37.05 and Osculati 58.506.15. The supplied Viadana specification for this longer version gives a heavier 19 x 2.5 mm section with Ø8 mm holes, while the Osculati listing specifies 14 x 2 mm with Ø6 mm holes. Both catalogue references are therefore preserved without merging the conflicting dimensions.

Product Features

Brand: Viadana
Product type: Hollow chain plate
Material: AISI 316 stainless steel
Application: Sailboat standing rigging and attachment systems
Construction: Elongated perforated stainless steel plate
Available lengths: 80 mm, 100 mm, 120/125 mm and 1000 mm
Standard section on shorter versions: 14 x 2 mm
Standard hole diameter on shorter versions: Ø6 mm
Long 1000 mm Viadana version: 19 x 2.5 mm section with Ø8 mm holes

Available Variants

Length	Section	Hole Diameter	Viadana Article	Osculati Code	FNI Product Number
80 mm	14 x 2 mm	Ø6 mm	37.02	58.506.10	7878828
100 mm	14 x 2 mm	Ø6 mm	37.03	58.506.11	7878829
120 mm Viadana / 125 mm Osculati	14 x 2 mm	Ø6 mm	37.04	58.506.12	7878830
1000 mm	19 x 2.5 mm Viadana / 14 x 2 mm Osculati	Ø8 mm Viadana / Ø6 mm Osculati	37.05	58.506.15	7878831
