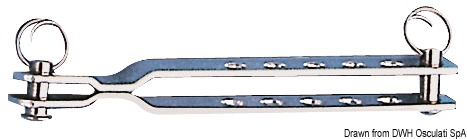

Viadana Double Chain Plate with Adjustment Holes is a compact AISI 316 stainless steel rigging fitting designed to provide a strong and adjustable attachment point in sailing and marine rigging systems. The 120 mm plate uses a double welded construction with multiple adjustment holes, a 2 mm thickness and Ø6 mm pin diameter, allowing the connection position to be selected to suit the rigging setup. The product corresponds to Viadana article 37.07, Osculati code 58.506.30 and FNI product number 7878838.
- Description
- Ask a Question
-
Viadana AISI 316 Stainless Steel Double Chain Plate with Adjustment Holes, 120 mm, Ø6 mm Pin - Viadana 37.07 / Osculati 58.506.30
Viadana Double Chain Plate with Adjustment Holes is designed for sailing and marine rigging systems where a secure attachment point with a degree of positional adjustment is required. Its double chain-plate configuration provides a robust connection for compatible rigging hardware, while the series of adjustment holes allows the attachment position to be selected according to the installation geometry.
The fitting is manufactured from AISI 316 stainless steel for durable use in marine environments. The supplied Viadana specification describes the component as a hollow and welded chain plate with a 2 mm thickness, combining a compact profile with a strong welded construction suitable for standing-rigging and related deck or mast attachment applications.
The plate measures 120 mm in length and is designed for a Ø6 mm pin. Multiple adjustment holes provide flexibility when setting the effective connection position, making the fitting suitable for installations where rigging tension or geometry may need to be adapted during assembly.
The same component is identified as Viadana article 37.07, Osculati code 58.506.30 and FNI product number 7878838.
Product Features
- Brand: Viadana
- Product type: Double chain plate with adjustment holes
- Material: AISI 316 stainless steel
- Construction: Hollow and welded double chain plate
- Length: 120 mm
- Thickness: 2 mm
- Pin diameter: Ø6 mm
- Adjustment: Multiple holes for selecting the attachment position
- Application: Sailing and marine rigging attachment systems
Article References
Catalogue Article Description Viadana 37.07 Hollow and Welded Double Chain Plate Osculati 58.506.30 Stainless Steel Double Chain Plate with Adjustment Holes, 120 mm FNI 7878838 Hollow and Welded Chain Plate -
