ID
1393938
$ 67.52
1-2 weeks delivery time
Type:
- With Pin
- Without Pin
Size:
- 25
- 32
- 38
- 54
Item:
- Short 2 Holes
- Long 3 Holes
SeaSure rudder gudgeons are available in 25 mm, 32 mm, 38 mm and 54 mm internal widths, with short and long configurations and versions with or without a retaining pin. The 25 mm, 38 mm and 54 mm models are manufactured from heated and drawn aluminium with a hard black anodised finish and include a nylon bearing bush. The 32 mm range uses 5 mm fixing holes, is designed specifically for compatibility with SeaSure rudder fittings and allows the bush to be replaced separately with SeaSure 18.39.
- Description
- Ask a Question
-

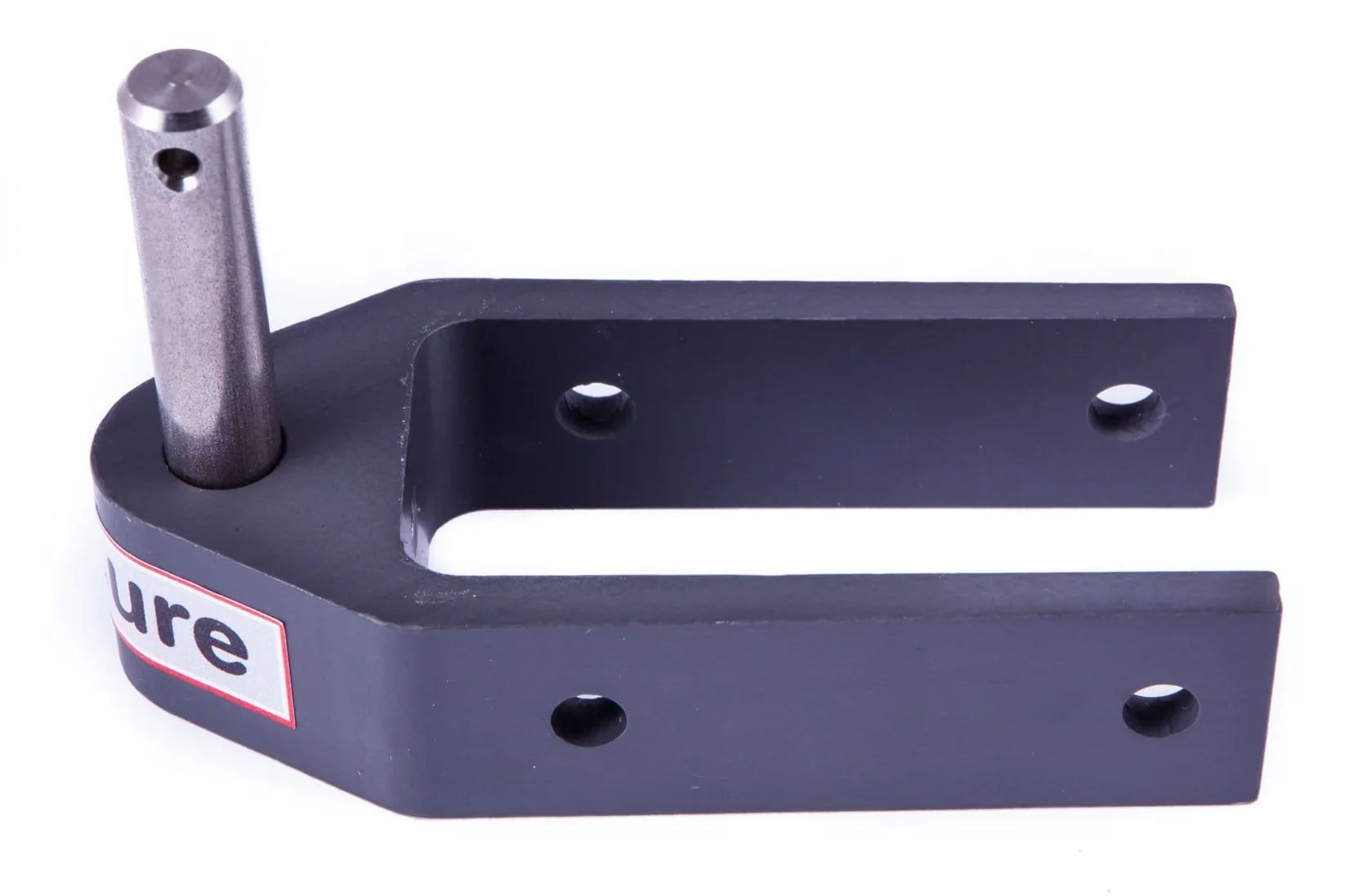

SeaSure Rudder Gudgeons, 25-54 mm, Short or Long, with or without Pin
SeaSure rudder gudgeons are designed for connecting rudder heads or rudderstocks to compatible transom pintles. The range includes 25 mm, 32 mm, 38 mm and 54 mm internal widths with both short and long configurations and versions available with or without a retaining pin.
The 25 mm, 38 mm and 54 mm gudgeons are manufactured from heated and drawn aluminium rather than cast material and have a hard black anodised finish for corrosion protection. These variants incorporate a nylon bearing bush and use an 8 mm diameter hole for the mating transom fitting.
The 32 mm gudgeons are available in short and long versions with or without a pin. They use 5 mm fixing holes and are intended specifically for use with compatible SeaSure rudder fittings. The bush can be replaced separately using SeaSure 18.39 rather than replacing the complete gudgeon.
SeaSure gudgeons are available with different fixing arrangements depending on the installation. A 2-hole fitting is typically used at the top of the rudder or rudderstock and a 3-hole fitting at the bottom, while a 3-hole fitting can also be used at the top where additional strength is required.
Product Features
- Brand: SeaSure
- Product type: Rudder gudgeon
- Available internal widths: 25 mm, 32 mm, 38 mm and 54 mm
- Available configurations: Short and long
- Available with or without retaining pin
- 25 mm, 38 mm and 54 mm versions: Heated and drawn aluminium
- 25 mm, 38 mm and 54 mm versions: Hard black anodised finish
- 25 mm, 38 mm and 54 mm versions: Nylon bearing bush
- 25 mm, 38 mm and 54 mm versions: 8 mm transom fitting hole
- 32 mm versions: 5 mm fixing holes
- 32 mm versions: Compatible only with SeaSure mating fittings
- Replacement bush for 32 mm versions: SeaSure 18.39
- Suitable rudder head thickness for 25 mm, 38 mm and 54 mm range: 25-54 mm
Available Variants
SeaSure Article Article Code Internal Width Length Pin Key Specification EAN 18.00 653800 25 mm Short No 8 mm transom fitting hole 5036830080504 18.01 653801 25 mm Short Yes 8 mm transom fitting hole 5036830018019 18.02 653802 25 mm Long No 8 mm transom fitting hole 5036830080511 18.03 653803 25 mm Long Yes 8 mm transom fitting hole 5036830018033 18.43 653843 32 mm Short No 5 mm fixing holes 5036830040702 18.44 653844 32 mm Short Yes 5 mm fixing holes 5036830018446 18.45 653845 32 mm Long No 5 mm fixing holes 5036830080719 18.46 653846 32 mm Long Yes 5 mm fixing holes 5036830018460 18.04 653804 38 mm Short No 8 mm transom fitting hole 5036830080528 18.05 653805 38 mm Short Yes 8 mm transom fitting hole 5036830018057 18.06 653806 38 mm Long No 8 mm transom fitting hole 5036830080535 18.07 653807 38 mm Long Yes 8 mm transom fitting hole 5036830018071 18.08 653808 54 mm Short No 8 mm transom fitting hole 5036830080542 18.09 653809 54 mm Short Yes 8 mm transom fitting hole 5036830018095 18.10 653810 54 mm Long No 8 mm transom fitting hole 5036830080559 18.11 653811 54 mm Long Yes 8 mm transom fitting hole 5036830018118 -
