ID
1393958
$ 57.67
1-2 weeks delivery time
-
+
SeaSure 18.14 is a 4-hole transom pintle designed for secure rudder mounting. This version has an 8 mm pintle pin and four 5 mm countersunk fixing holes. The pin is manufactured from 316 stainless steel and includes a cross hole for an R-clip or split ring to retain the rudder. Optional SeaSure 18.54 packing pieces can be used to increase the stand-off distance from the transom.
- Description
- Ask a Question
-

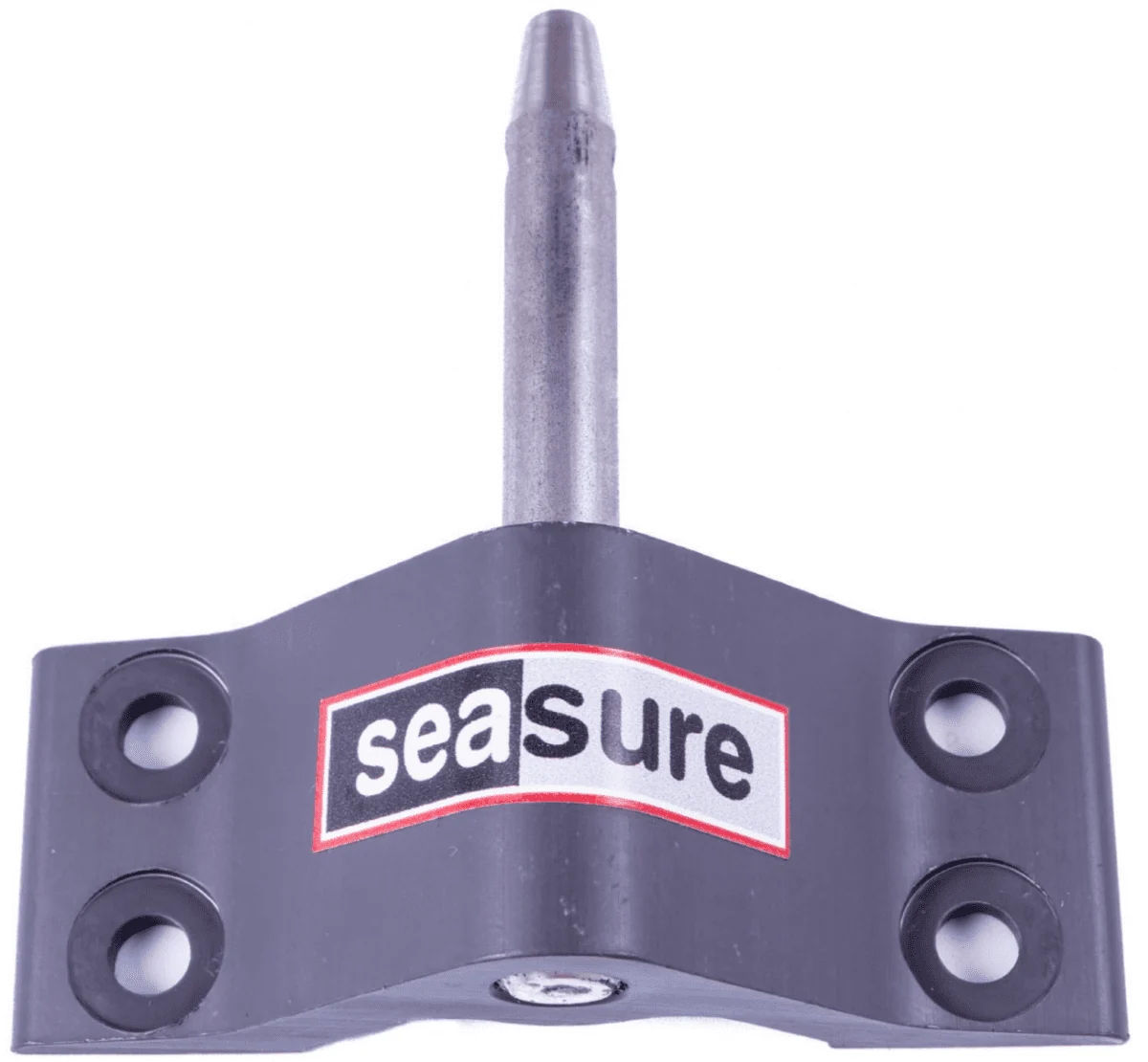

SeaSure 18.14 4-Hole Transom Pintle with 8 mm 316 Stainless Steel Pin
SeaSure 18.14 is a 4-hole transom pintle designed for mounting a rudder assembly to the stern of the boat.
This version uses an 8 mm pintle pin and has four 5 mm countersunk fixing holes for secure attachment to the transom.
The pintle pin is manufactured from 316 stainless steel and is designed to fit SeaSure gudgeon ranges. A cross hole in the pin allows an R-clip or split ring to be fitted to retain the rudder on the transom fittings.
Optional SeaSure 18.54 packing pieces are available when additional spacing between the fitting and the transom is required.
Product Features
- Brand: SeaSure
- Manufacturer article number: 18.14
- Product type: 4-hole transom pintle
- Mounting type: Transom mounted
- Pintle pin diameter: 8 mm
- Pin material: 316 stainless steel
- Number of fixing holes: 4
- Fixing holes: 5 mm countersunk
- Cross hole in pintle pin
- Rudder retention: R-clip or split ring
- Designed for compatibility with SeaSure gudgeon ranges
- Optional packing piece: SeaSure 18.54
Technical Specifications
Parameter Specification Manufacturer Article 18.14 Article Code 653814 Product Type 4-hole transom pintle Pin Diameter 8 mm Pin Material 316 stainless steel Fixing Holes 4 x 5 mm countersunk Pin Retention R-clip or split ring via cross hole Optional Packing Piece SeaSure 18.54 EAN 5036830018149 -
