ID
1393924
$ 78.23
1-2 weeks delivery time
Size:
- 64x73 mm
- 76x70 mm
SeaSure flat eye plates are heavy-duty marine fittings manufactured from 316 stainless steel and finished for smooth, corrosion-resistant performance. The range includes SeaSure 15.90 with a 64 x 73 mm plate, 2.0 mm thickness, 9.5 mm eye material diameter and 5.0 mm fixing holes, and SeaSure 15.91 with a 76 x 70 mm plate, 3.0 mm thickness, 12.7 mm eye material diameter and 6.8 mm fixing holes. Both variants are designed for demanding marine installations.
- Description
- Ask a Question
-

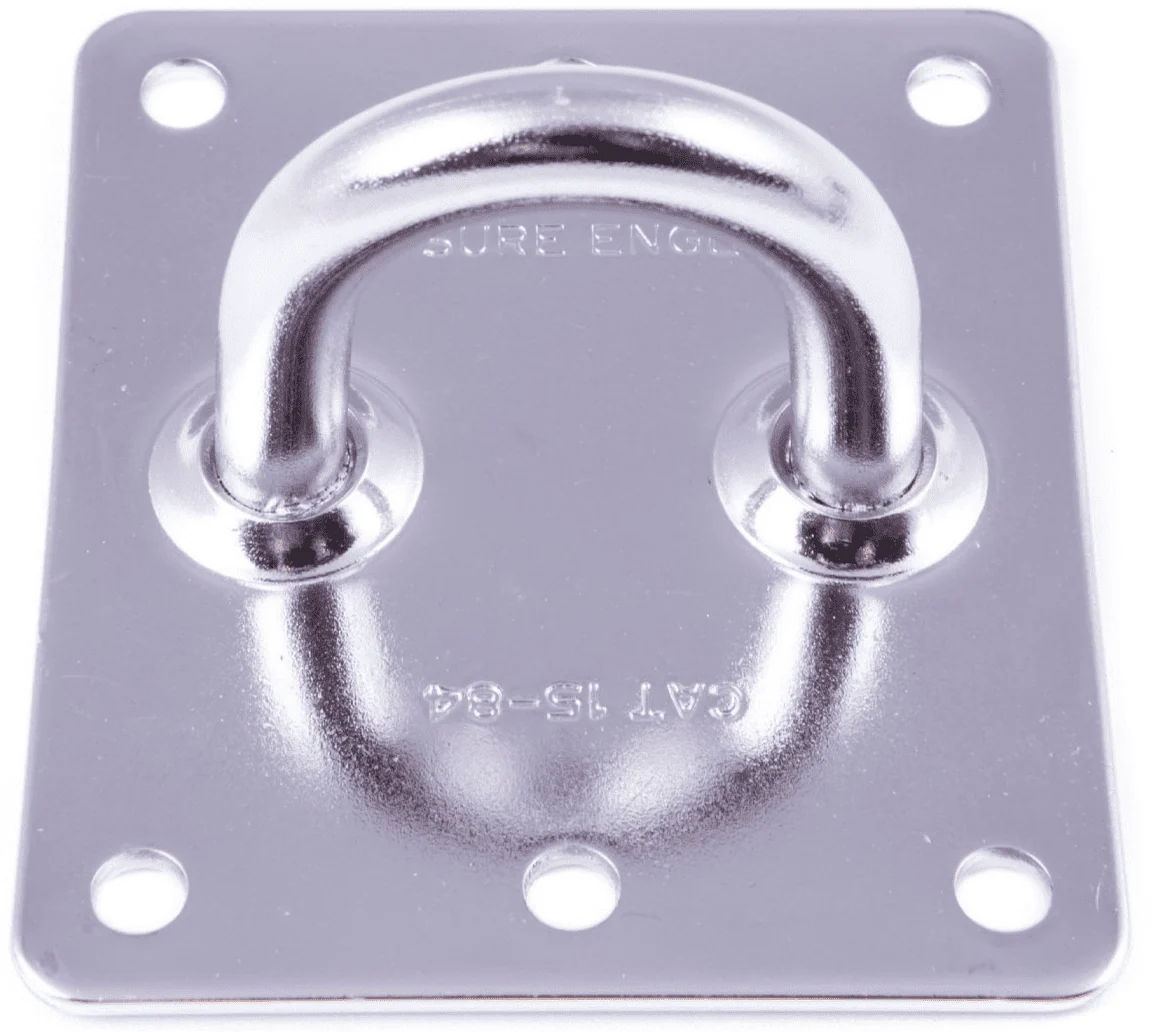

SeaSure Flat Eye Plates in 316 Stainless Steel, 64 x 73 mm and 76 x 70 mm
SeaSure flat eye plates are designed for demanding marine fastening and attachment applications where strong stainless steel construction and a smooth finished surface are required.
The range is manufactured from 316 stainless steel and includes two sizes. SeaSure 15.90 measures 64 x 73 mm with a plate thickness of 2.0 mm, while SeaSure 15.91 measures 76 x 70 mm with a plate thickness of 3.0 mm.
The 15.90 version uses 9.5 mm diameter eye material and 5.0 mm fixing holes. The larger 15.91 version uses 12.7 mm diameter eye material and 6.8 mm fixing holes.
Both variants are machined and polished for a smooth finish and corrosion-resistant performance in marine environments.
Product Features
- Brand: SeaSure
- Product type: Flat eye plate
- Material: 316 stainless steel
- Available plate sizes: 64 x 73 mm and 76 x 70 mm
- Available plate thicknesses: 2.0 mm and 3.0 mm
- Eye material diameter: 9.5 mm or 12.7 mm depending on variant
- Fixing hole diameter: 5.0 mm or 6.8 mm depending on variant
- Smooth machined and polished finish
- Designed for demanding marine applications
Available Variants
SeaSure Article Article Code Plate Size Plate Thickness Eye Material Diameter Fixing Hole Diameter Material EAN 15.90 654190 64 x 73 mm 2.0 mm 9.5 mm 5.0 mm 316 stainless steel 5036830015902 15.91 654191 76 x 70 mm 3.0 mm 12.7 mm 6.8 mm 316 stainless steel 5036830015919 -
