ID
1393962
$ 50.76
1-2 weeks delivery time
-
+
SeaSure 18.18 is a compact lightweight transom pintle intended primarily for use at the top of the transom on small, lightweight boats. This version has an 8 mm pintle pin and two 5 mm countersunk fixing holes. The pin is manufactured from 316 stainless steel and includes a cross hole for securing the rudder with an R-clip or split ring. Optional SeaSure 18.52 packing pieces can be used to increase the stand-off distance from the transom.
- Description
- Ask a Question
-

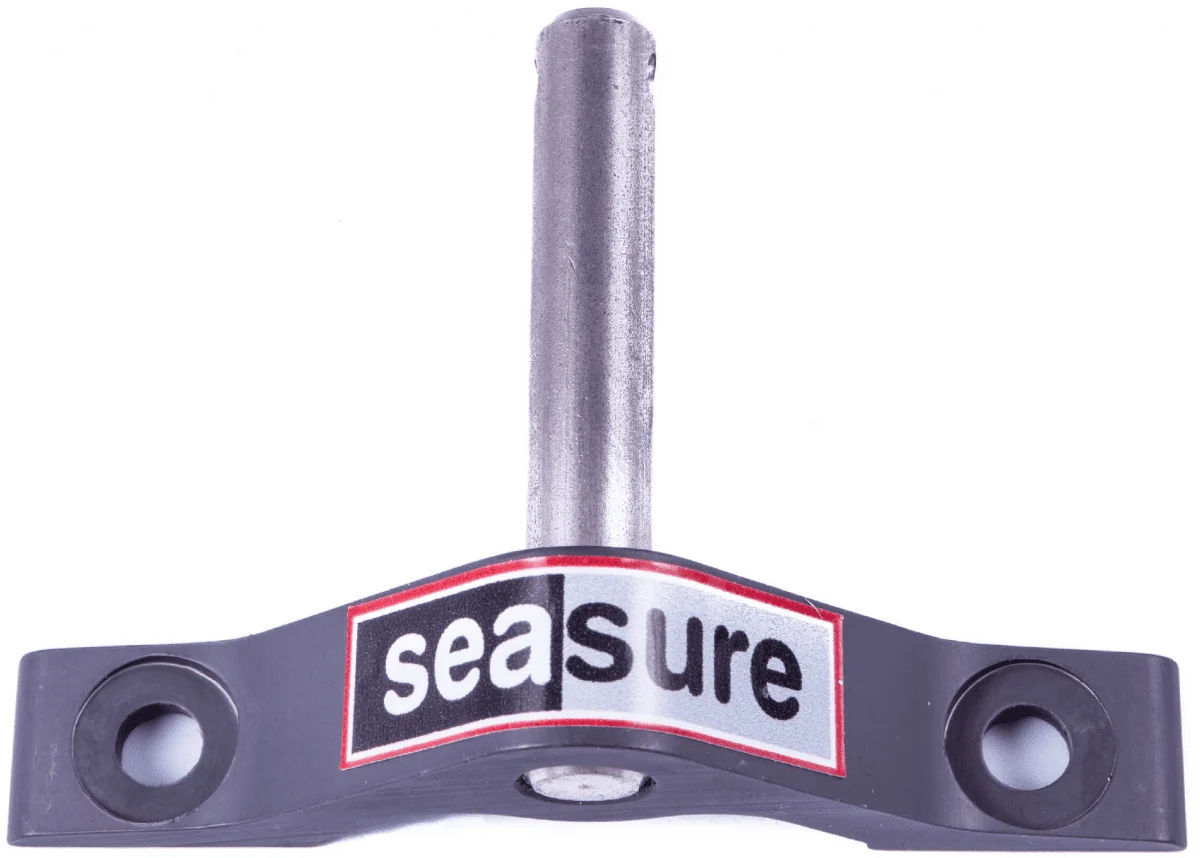

SeaSure 18.18 Lightweight Transom Pintle with 8 mm 316 Stainless Steel Pin
SeaSure 18.18 is a compact and lightweight transom pintle designed primarily for use at the top of the transom on small, lightweight boats.
This version uses an 8 mm pintle pin and has two 5 mm countersunk fixing holes for attachment to the stern of the boat.
The pintle pin is manufactured from 316 stainless steel and is designed to fit SeaSure gudgeon ranges. A cross hole in the pin allows an R-clip or split ring to be fitted to secure the rudder to the transom fittings.
Optional SeaSure 18.52 packing pieces are available when additional spacing between the fitting and the transom is required.
Product Features
- Brand: SeaSure
- Manufacturer article number: 18.18
- Product type: Lightweight transom pintle
- Typical mounting position: Top of transom
- Designed for small, lightweight boats
- Pintle pin diameter: 8 mm
- Pin material: 316 stainless steel
- Number of fixing holes: 2
- Fixing holes: 5 mm countersunk
- Cross hole in pintle pin
- Rudder retention: R-clip or split ring
- Designed for compatibility with SeaSure gudgeon ranges
- Optional packing piece: SeaSure 18.52
Technical Specifications
Parameter Specification Manufacturer Article 18.18 Article Code 653818 Product Type Lightweight transom pintle Pin Diameter 8 mm Pin Material 316 stainless steel Fixing Holes 2 x 5 mm countersunk Pin Retention R-clip or split ring via cross hole Optional Packing Piece SeaSure 18.52 EAN 5036830018187 -
