ID
1393911
$ 118.70
1-2 weeks delivery time
-
+
SeaSure 15.51 is a curved bow mast eye plate with a 75 mm radius, manufactured from 316 stainless steel for marine use. The plate measures 70 x 76 mm with a thickness of 3.0 mm, a 12.7 mm eye material diameter and 6.8 mm fixing holes. Multiple finishing stages provide a smooth surface, while electro-polishing improves resistance to saltwater corrosion.
- Description
- Ask a Question
-

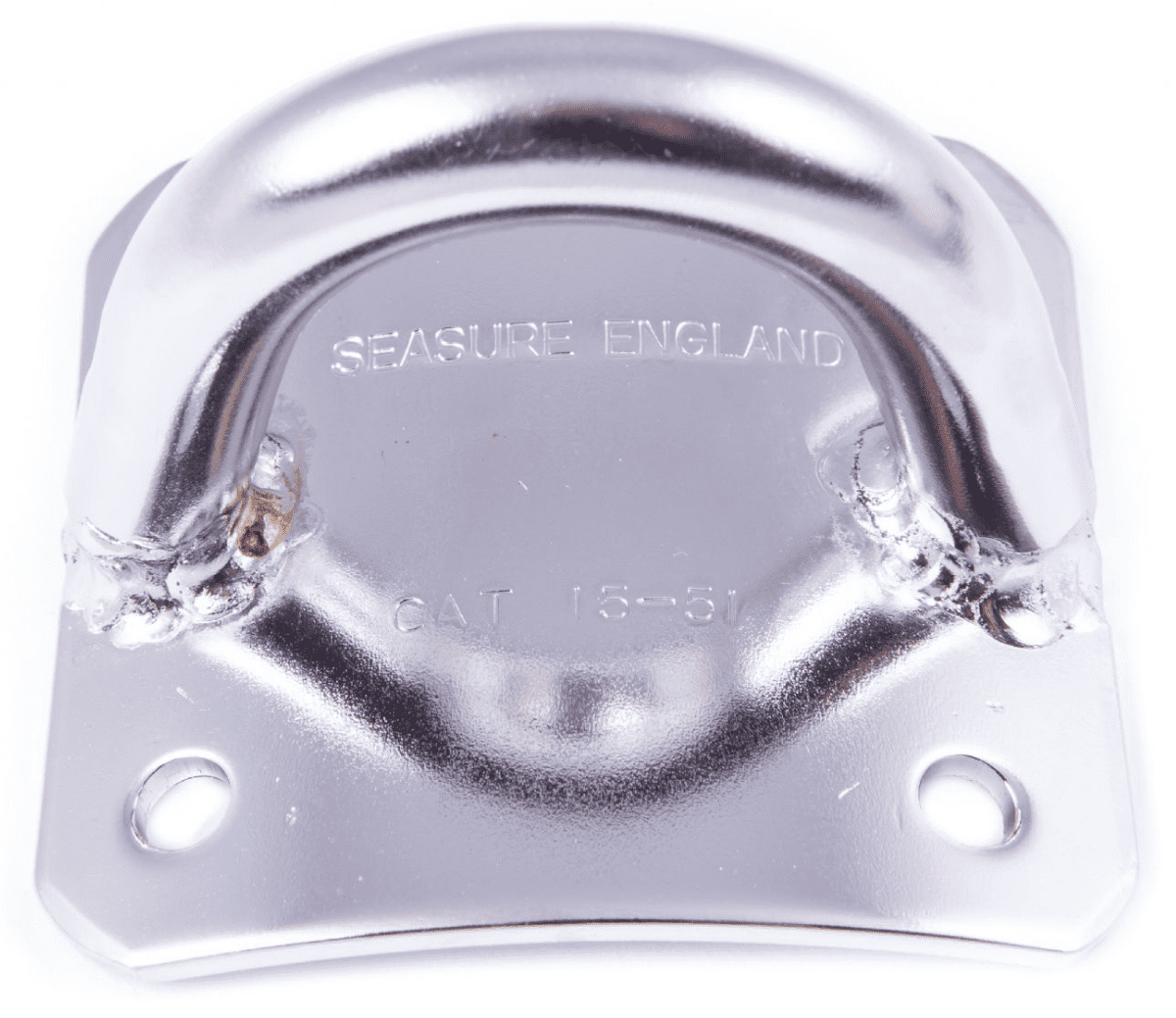

SeaSure 15.51 Curved Bow Mast Eye Plate, 75 mm Radius, 70 x 76 mm, 316 Stainless Steel
SeaSure 15.51 is a curved bow mast eye plate with a 75 mm radius, designed for marine mast installations.
The plate measures 70 x 76 mm and has a material thickness of 3.0 mm. The eye is formed from 12.7 mm diameter material, while the fixing holes have a diameter of 6.8 mm.
The fitting is manufactured from 316 stainless steel and passes through multiple finishing stages to provide a smooth surface. An electro-polished finish improves durability and resistance to saltwater corrosion.
Product Features
- Brand: SeaSure
- Manufacturer article number: 15.51
- Product type: Curved bow mast eye plate
- Mast radius: 75 mm
- Plate size: 70 x 76 mm
- Plate thickness: 3.0 mm
- Eye material diameter: 12.7 mm
- Fixing hole diameter: 6.8 mm
- Material: 316 stainless steel
- Finish: Electro-polished
- Smooth finished surface
- Designed for marine use
Technical Specifications
Parameter Specification Manufacturer Article 15.51 Article Code 654151 Product Type Curved bow mast eye plate Mast Radius 75 mm Plate Size 70 x 76 mm Plate Thickness 3.0 mm Eye Material Diameter 12.7 mm Fixing Hole Diameter 6.8 mm Material 316 stainless steel Finish Electro-polished EAN 5036830015513 -
