The Wichard 82467 swivel with a large bail is forged from 17.4 PH stainless steel and has no opening sides. Its ball bearings ensure smooth rotation while handling working loads of 1600 kg and breaking loads of 3000 kg, measuring 80 mm in length and weighing 96 g.
- Description
- Ask a Question
-

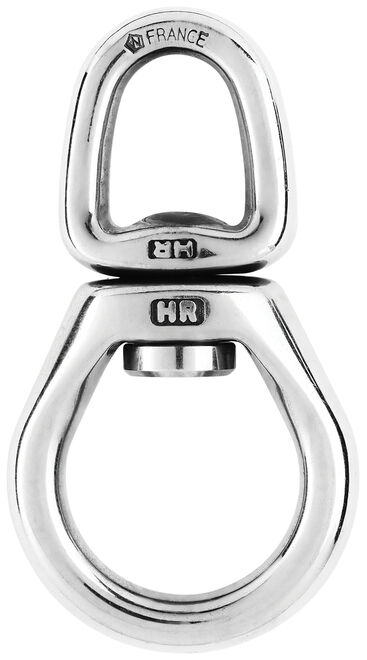

Wichard 82467 - Swivel With Large Bail With Ball Bearings Length 80 mm
Forged HR swivel made from 17.4 PH stainless steel with no opening sides. Ball bearings ensure easy rotation while supporting high working and breaking loads.
- Applications: Connect two components with different rotational movement; ideal for situations requiring easier rotation; not suitable for mooring applications.
- Materials: HR 17.4 PH stainless steel grade
- Length: 80 mm
- Working load: 1600 kg
- Breaking load: 3000 kg
- Weight: 96 g

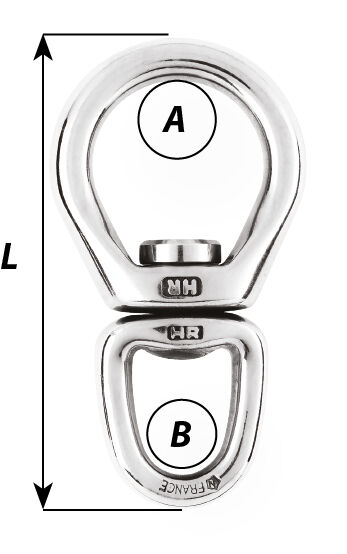

- A: 26 mm
- B: 14 mm
- Item number: WR82467
-
