The Wichard 82464 swivel is a high-resistance forged component made from 17.4 PH stainless steel, featuring a single opening side and one eye. Equipped with ball bearings, it allows smooth rotation while handling working loads of 1600 kg and breaking loads of 2800 kg, with a total length of 70 mm and weight of 87 g.
- Description
- Ask a Question
-

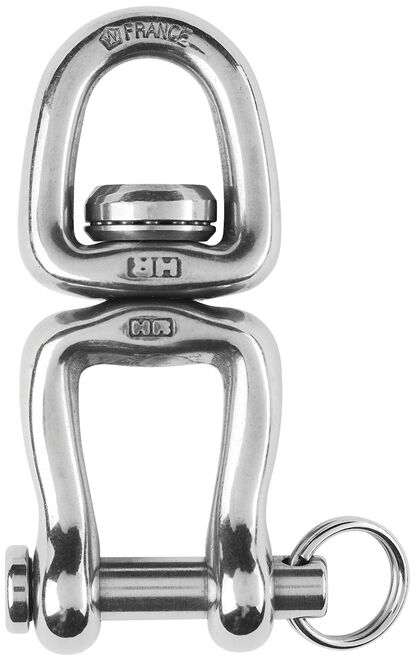

Wichard 82464 - Swivel With Clevis Pin And Ball Bearings Length 70 mm
High-resistance forged swivel crafted from 17.4 PH stainless steel with a single opening side and one eye. Equipped with ball bearings to ensure smooth and easy rotation, it delivers exceptional working and breaking loads.
- Applications: Connect two components with different rotational movement; ideal for situations requiring easier rotation; not suitable for mooring applications.
- Materials: HR 17.4 PH stainless steel grade
- Length: 70 mm
- Working load: 1600 kg
- Breaking load: 2800 kg
- Weight: 87 g

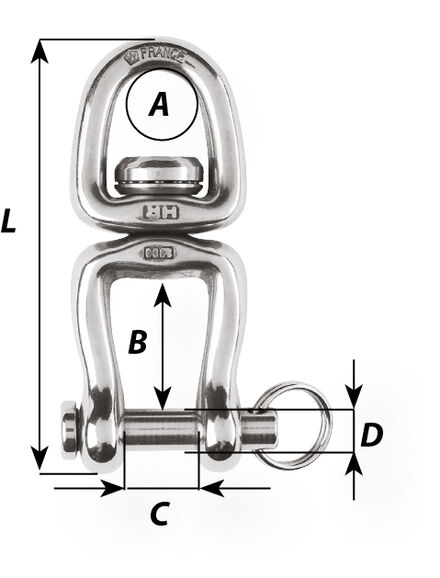

- A: 14 mm
- B: 21 mm
- C: 11 mm
- D diameter: 7 mm
- Item number: WR82464
-
