ID
1304471
$ 88.90
1-2 weeks delivery time
-
+
The Wichard 2363 HR forged swivel pin features two openings and a low-clutter allen head pin for linking rotating components, made from 17.4 PH stainless steel, with a working load of 1440 kg, breaking load of 2800 kg, and 80 mm length.
- Description
- Ask a Question
-

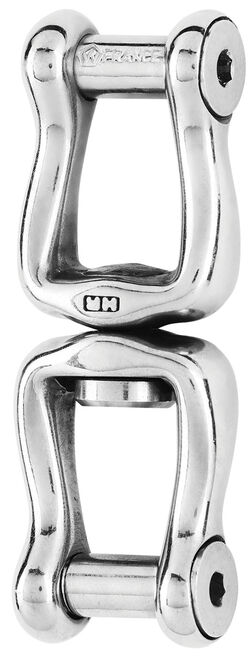

Wichard 2363 - Swivel Pin With Allen Head HR SS 80 mm
This HR forged swivel (17.4 Ph) features two openings and a low-clutter allen head pin, designed for linking two components that rotate differently. It delivers exceptional working and breaking loads, but it should not be used for mooring applications.
- Materials: HR 17.4 PH stainless steel grade
- Length: 80 mm
- Working load: 1440 kg
- Breaking load: 2800 kg
- Weight: 99 g

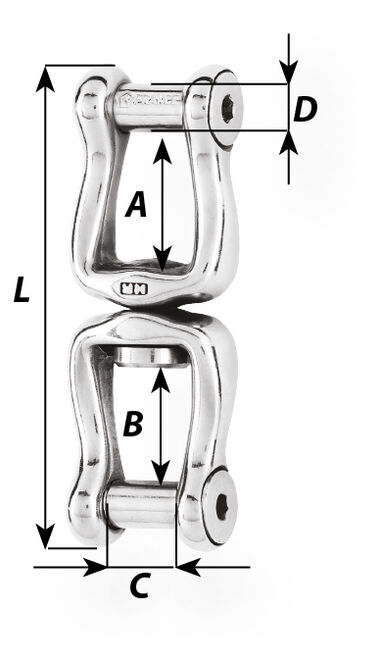

- A: 20 mm
- B: 17 mm
- C: 11 mm
- D diameter: 8 mm
- Item number: WR2363
-
