The Wichard 2369 HR forged swivel pin has two openings and a low-profile allen head pin, delivering high working and breaking loads for linking rotating components, made from 17.4 PH stainless steel, measuring 120 mm with a working load of 2000 kg and breaking load of 5000 kg.
- Description
- Ask a Question
-
Wichard 2369 - Swivel Pin With Allen Head HR SS 120 mm

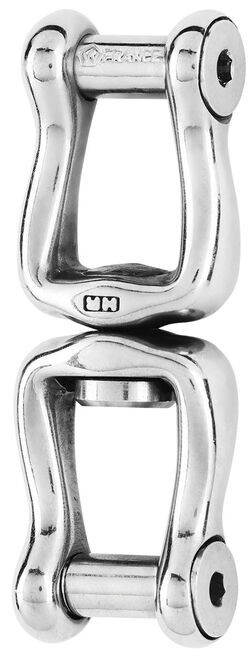

This HR forged swivel pin, crafted from 17.4 PH stainless steel, features two openings and a low-profile allen head pin. It delivers exceptional working and breaking loads for applications that require linking two components with different rotations. Not intended for mooring use.
- Materials: HR 17.4 PH stainless steel grade

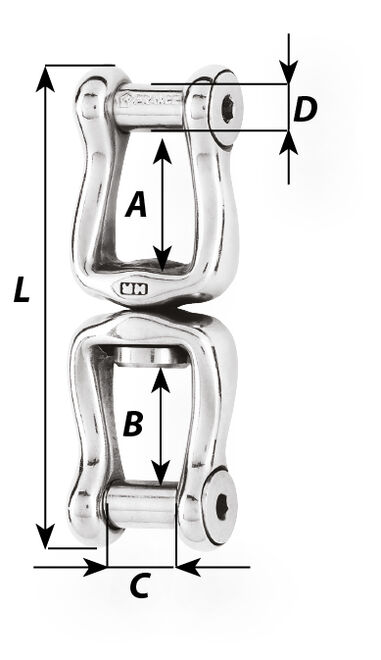

- Length: 120 mm
- Working load: 2000 kg
- Breaking load: 5000 kg
- Weight: 312 g
- A: 31 mm
- B: 27 mm
- C: 18 mm
- D diameter: 10 mm
- Item number: WR2369
-
