ID
1304423
$ 41.29
1-2 weeks delivery time
-
+
The Wichard 1494 Thimble Shackle Captive Pin, forged from 316L stainless steel, allows rope splicing without an extra thimble and prevents pin loss. It offers high strength for marine and rigging applications, suitable for mainsheet halyards and ropes up to 12 mm.
- Description
- Ask a Question
-

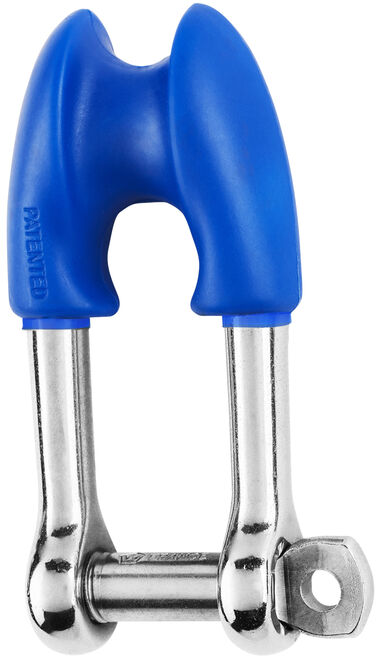

Wichard 1494 - Thimble Shackle Captive Pin 8 mm
Durable thimble shackle with captive pin forged from 316L stainless steel. It enables splicing of a rope without the need for an additional thimble and prevents pin loss during use. Delivers reliable strength and longevity for marine and rigging applications.
- Forged in 316L stainless steel
- Allows rope splicing without extra thimble
- Captive pin prevents loss
- High working and breaking loads
- Ideal for mainsheet halyards
- Max rope size: 12 mm
- Materials: 316 stainless steel grade
- Working load (kg): 1000
- Breaking load (kg): 3000
- Weight (g): 78

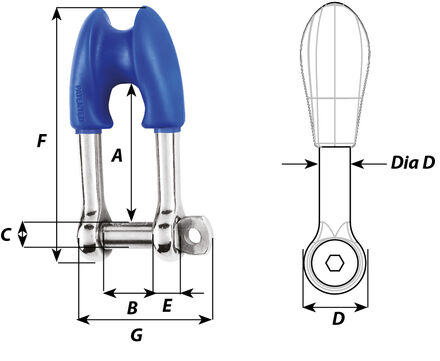

- A (mm): 41
- B (mm): 16
- C (mm): 8
- D (mm): 16
- D diameter (mm): 8
- E (mm): 7
- F (mm): 76
- G (mm): 42
- Item number: WR1494
-
