ID
1304361
$ 93.52
1-2 weeks delivery time
-
+
The Wichard 1207 14 mm D-shackle, crafted from 316L stainless steel, is a robust lifting component without a self-locking pin but still provides high working and breaking loads, CE marked, with a working load of 2400 kg.
- Description
- Ask a Question
-

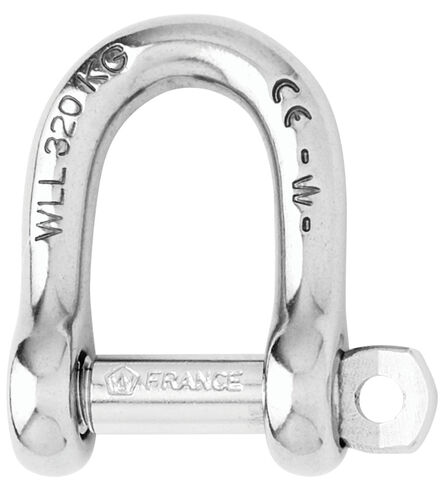

Wichard 1207 - D-Shackle Stainless Steel 14 mm
This 14 mm D-shackle, crafted from 316L stainless steel, is built for robust industrial lifting. Unlike other models, it is not self-locking, yet still maintains exceptional working and breaking loads, ensuring reliability under demanding conditions. CE marked for compliance.
- Material: 316 stainless steel grade
- Working load: 2400 kg
- WLL: 1600 kg
- Breaking load: 8000 kg
- Weight: 312 g

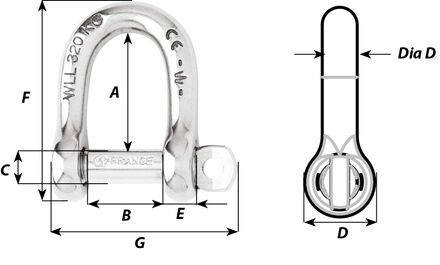

- A: 47 mm
- B: 28 mm
- C: 14 mm
- D: 28 mm
- D diameter: 14 mm
- E: 13 mm
- F: 82 mm
- G: 78 mm
- Item number: WR1207
- Applications: Standard shackle uses, attachment for blocks and heads
-
