ID
1304359
$ 25.69
1-2 weeks delivery time
-
+
The Wichard 1205 self-locking 10 mm D-shackle is forged from 316L stainless steel with a secure pin, CE certified for industrial lifting tasks, and delivers high working and breaking loads of 1520 kg and 4300 kg, respectively.
- Description
- Ask a Question
-

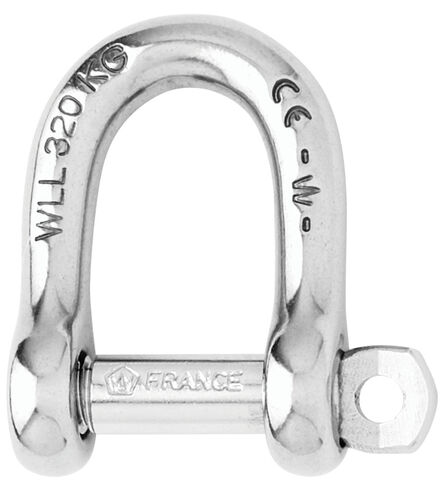

Wichard 1205 - Self-Locking D-Shackle Stainless Steel 10 mm
This self-locking D-shackle is expertly forged from grade 316L stainless steel, ensuring reliable strength and durability. Its pin securely locks into one of the indentations, eliminating the risk of loosening due to vibrations. Ideal for industrial lifting applications, it carries CE certification and delivers exceptional working and breaking loads.
- Material: 316 stainless steel grade
- Working load: 1520 kg
- WLL: 860 kg
- Breaking load: 4300 kg
- Weight: 98 g

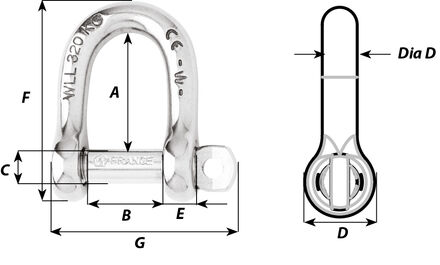

- A: 33 mm
- B: 20 mm
- C: 10 mm
- D: 19 mm
- D diameter: 10 mm
- E: 9 mm
- F: 57 mm
- G: 52 mm
- Item number: WR1205
- Applications: Standard shackle uses, attachment for blocks and heads
-
