ID
1299942
$ 17,766.97
1-2 weeks delivery time
-
+
The Harken 70.3STEP12H is an electric self-tailing Performa™ winch optimized for handling small-diameter halyard and sheet lines. Its sandblasted drum ensures smooth operation under load, allowing for effortless sail trimming at the push of a button.
- Description
- Ask a Question
-

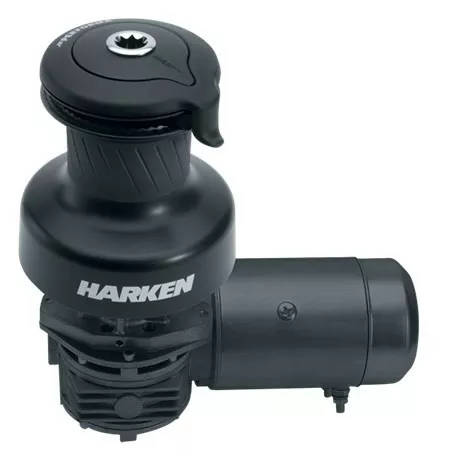

Harken 70.3STEP12H - Electric Self-Tailing Performa™ Winch 3 Speed, 12V, Horizontal 70.3STE Black
The Harken 70.3STEP12H winch combines advanced electric performance with a self-tailing design, optimized for handling small-diameter halyard and sheet lines. Its sandblasted drum ensures smooth operation under load, letting you trim sails effortlessly at the push of a button.
- Minimum line Ø: 10 mm / 3/8 in
- Maximum line Ø: 16 mm / 5/8 in
- Configuration: Self-tailing
- Speed: 3
- Drum Ø: 130 mm / 5 1/8 in
- Base Ø: 240 mm / 9 7/16 in
- Height: 264 mm / 10 3/8 in
- Weight: 12.8 kg / 28.3 lb
- Weight of winch and motor: 23.6 kg / 52.1 lb
- Motor weight: 10.8 kg / 23.9 lb
- Line entry height: 115 mm / 4 1/2 in
- Fastener circle: 205 mm / 8 1/8 in
- Fasteners: M8 SH / 5/16 SH in
- Number of fasteners: 6
- Gear ratios: 2.3, 5.7, 18.5
- Power ratios: 9, 22.2, 72
- Racing disconnect rod: B70.3PDR

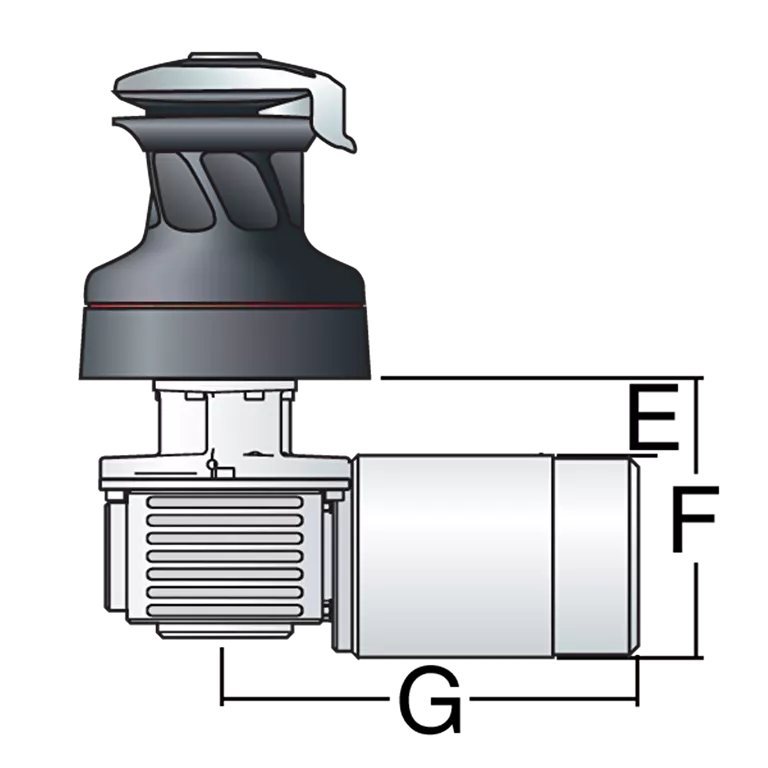

- E: 69 mm / 2 3/4 in
- F: 181 mm / 7 1/8 in
- G: 244 mm / 9 5/8 in
- Item number: HKW70.3STEP12H
-
