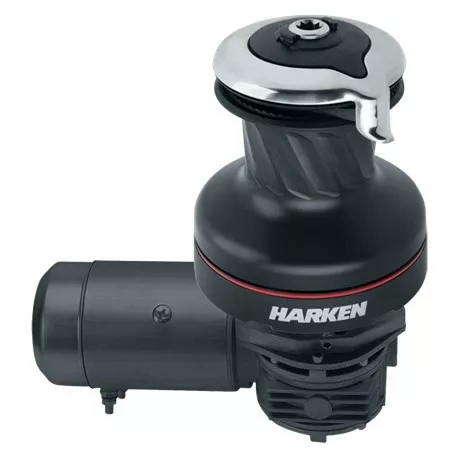

Harken 70.3STEA12H - Electric Self-Tailing Radial Aluminum Winch 3 Speed, 12V, Horizontal 70.3STE Black

ID 1299941

$ 15,335.62

1-2 weeks delivery time

- +

Add to cart

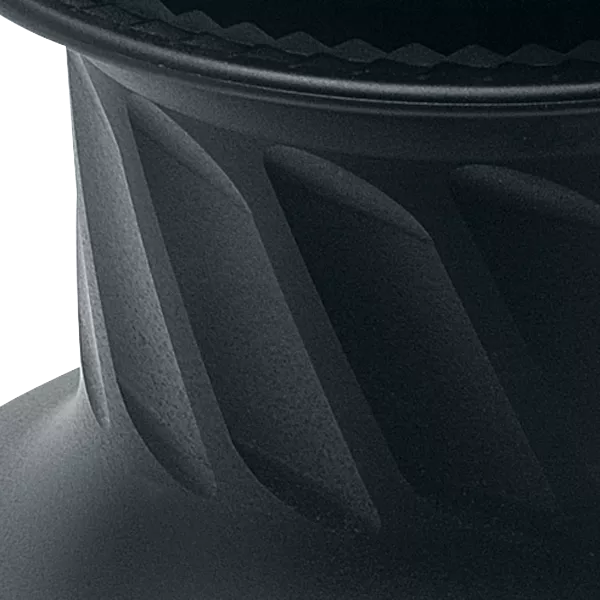

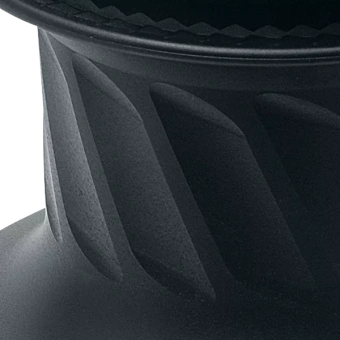

The Harken 70.3STEA12H is an electric radial aluminum winch designed for effortless sail handling. It combines high-strength materials with an efficient mechanical design to trim any size sail at the push of a button. Diagonal ribs on the drum reduce line wear, and the self-tailing function allows a single operator to manage sails easily.

Description
Ask a Question

Harken 70.3STEA12H - Electric Self-Tailing Radial Aluminum Winch 3 Speed, 12V, Horizontal 70.3STE Black

Designed for effortless sail handling, this electric radial aluminum winch combines high-strength materials and an efficient mechanical design to trim any size sail at the push of a button. Diagonal ribs on the drum reduce line wear, and the self-tailing function allows a single operator to manage sails easily. The integrated motor drives through two-speed mechanical advantage for precision trimming.
- Weight: 12.8 kg / 28.3 lb
- Weight of Winch and Motor: 23.6 kg / 52.1 lb
- Motor weight: 10.8 kg / 23.9 lb
- Maximum line diameter: 18 mm / 11/16 in
- Minimum line diameter: 10 mm / 3/8 in
- Fasteners: M8 SH mm / 5/16 SH in
- Fastener circle: 205 mm / 8 1/8 in
- Height: 264 mm / 10 3/8 in
- Number of fasteners: 6
- Configuration: Self-tailing
- Speed: 3
- Drum diameter: 130 mm / 5 1/8 in
- Base diameter: 240 mm / 9 7/16 in
- Line entry height: 115 mm / 4 1/2 in
- E dimension: 69 mm / 2 3/4 in
- F dimension: 181 mm / 7 1/8 in
- G dimension: 244 mm / 9 5/8 in
- Gear ratios: 2.30 / 5.70 / 18.50
- Power ratios: 9.00 / 22.20 / 72.00
- Material: Aluminum
- Voltage: 12 V
- Available power: Electric horizontal 12V
- Item number: HKW70.3STEA12H
