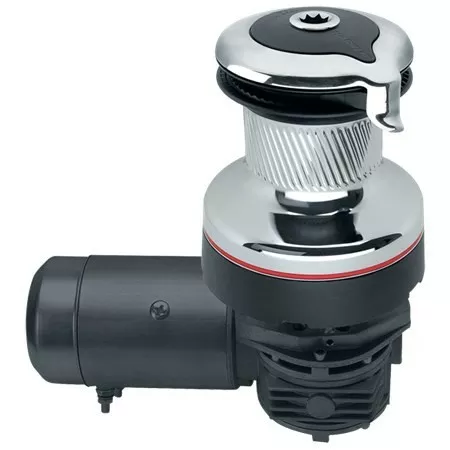

Harken 70.2STEC12H - Electric Self-Tailing Radial Chrome Winch 2 Speed, 12V, Horizontal 70.2STE Chrome/Black

ID 1299934

$ 13,598

1-2 weeks delivery time

- +

Add to cart

The Harken 70.2STEC12H is an electric radial winch designed for easy sail handling, featuring a radial drum with diagonal ribs for maximum grip and minimal wear. Its self-tailing capability allows a single crew member to manage sails efficiently. High-strength composite bearings and stainless-steel gears ensure durability, while the integrated motor offers two-speed mechanical advantage for both rapid trimming and precise control of loaded sheets.

Description
Ask a Question

Harken 70.2STEC12H - Electric Self-Tailing Radial Chrome Winch 2 Speed, 12V, Horizontal 70.2STE Chrome/Black

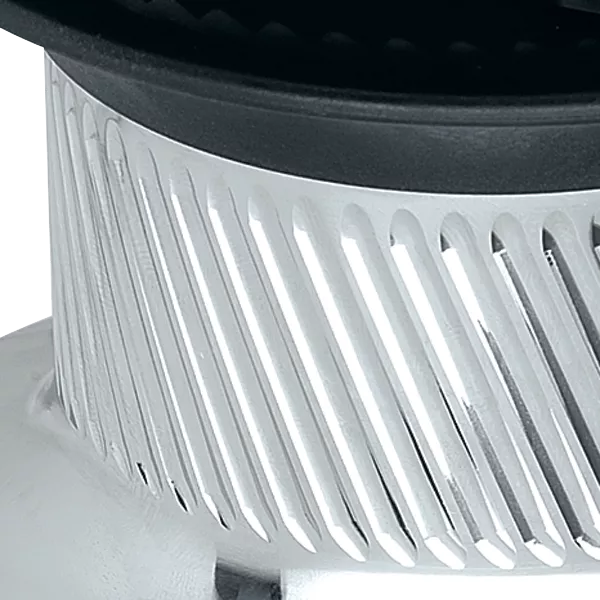

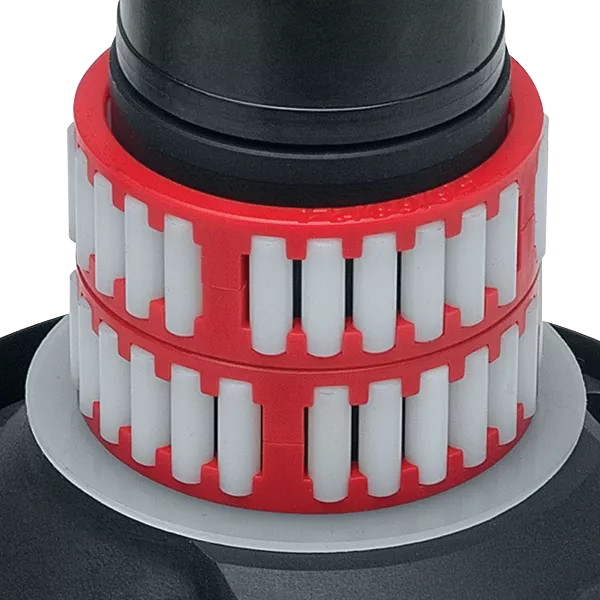

The Harken 70.2STEC12H electric radial winch combines effortless sail trimming with advanced engineering. Its radial drum with diagonal ribs maximizes line grip while minimizing wear, and the self-tailing feature allows a single crew member to handle sails efficiently. High-strength composite bearings reduce friction, and stainless-steel gears ensure durability. The motor integrates with the winch gears to offer two-speed mechanical advantage, allowing both rapid trimming and precise fine-tuning of loaded sheets.
- Weight: 15.1 kg / 33.3 lb
- Maximum line Ø: 18 mm / 11/16 in
- Minimum line Ø: 10 mm / 3/8 in
- Fasteners: M8 SH mm / 5/16 SH in
- Fastener circle: 205 mm / 8 1/8 in
- Number of fasteners: 6
- Height: 256 mm / 10 1/16 in
- E: 69 mm / 2 3/4 in
- F: 181 mm / 7 1/8 in
- G: 244 mm / 9 5/8 in
- Configuration: Self-tailing
- Speed: 2
- Drum Ø: 130 mm / 5 1/8 in
- Base Ø: 240 mm / 9 7/16 in
- Weight of Winch and Motor: 25.9 kg / 57.2 lb
- Motor weight: 10.8 kg / 23.9 lb
- Line entry height: 115 mm / 4 1/2 in
- Gear ratio: 5.70 / 18.50
- Power ratio: 22.20 / 72.00
- Voltage: 12V
- Material: Chrome
- Available power: Electric horizontal 12V
- Item number: HKW70.2STEC12H
