The Harken 689 diamond pad eye is a larger 316 stainless steel version, designed for mounting multiple blocks and attachment points on mastbases, supporting high loads with close-mount capability.
- Description
- Ask a Question
-

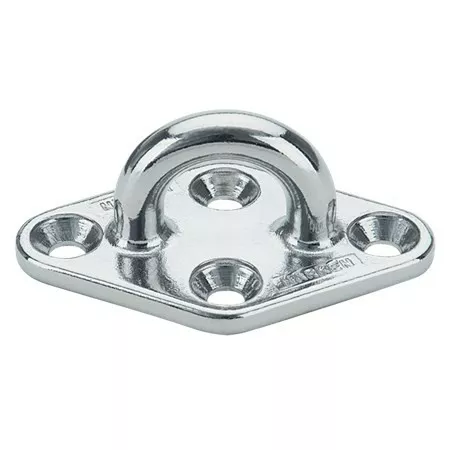

Harken 689 - 98mm Stainless Steel 316 Diamond Pad Eye
The Harken 689 is a larger version of the diamond pad eye, also made from 316 stainless steel. Its durable design is perfect for mounting blocks and multiple attachment points on mastbases, supporting high loads with close mounting capability.
- Weight: 7.5 oz (213 g)
- Fasteners: 8 FH mm (5/16 FH in)
- Dimensions: A - 3 7/8 in (98 mm), B - 2 5/16 in (59 mm), C - 2 7/8 in (73 mm), D - 1 3/8 in (35 mm), E - 1 9/16 in (40 mm), F - 7/8 in (22 mm), G - 1 1/16 in (27 mm)
- Maximum Working Load:
- Angle 1: 8500 lb (3855 kg)
- Angle 2: 8000 lb (3628 kg)
- Angle 3: 7800 lb (3540 kg)
- Breaking Load:
- Angle 1: 19000 lb (8618 kg)
- Angle 2: 17200 lb (7800 kg)
- Angle 3: 15600 lb (7075 kg)
-
