ID
1299273
$ 3,131.78
1-2 weeks delivery time
-
+
The Harken 493 underdeck furling system for sportboats and daysailers from 4.8 m to 9 m positions the drum beneath the deck to lower tack height, maximizes sail area, and allows an optional hoistable ball bearing halyard swivel, with a weight of 1433 g and maximum working load of 907 kg.
- Description
- Ask a Question
-

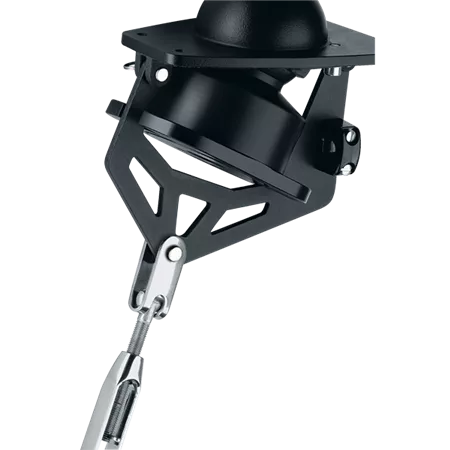

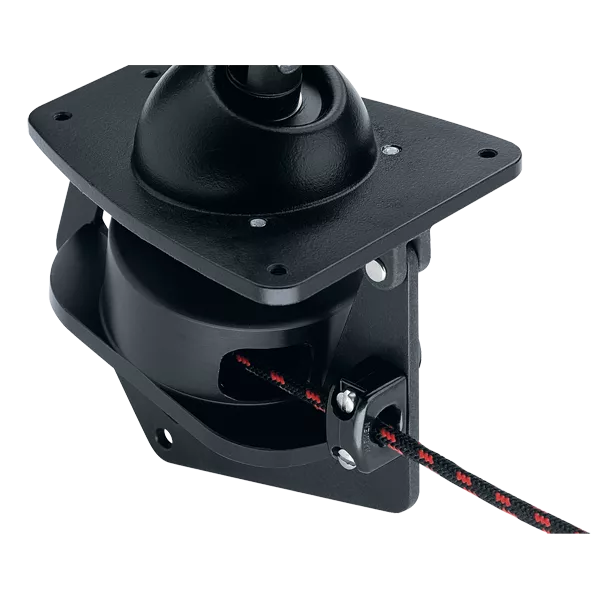

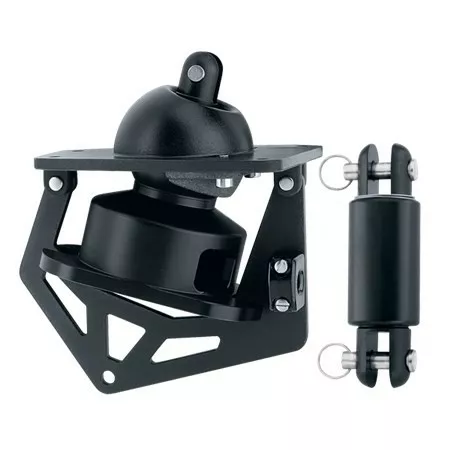

Harken 493 - Underdeck Furling System 5mm Luff Wire
- The Small Boat underdeck furling units are perfect for sportboats and daysailers ranging from 4.8 m to 9 m (16 to 30 ft). The drum is positioned beneath the deck to lower tack height, maximizing sail area. An optional hoistable ball bearing halyard swivel can be added to the headstay for easy sail raising or lowering, independent of the headstay tension. Item number: HK493
- Specifications:
- Weight: 1433 g (50.5 oz)
- Maximum line Ø: 5 mm (3/16 in)
- Maximum working load: 907 kg (2000 lb)
- Minimum line Ø: 4 mm (5/32 in)
- Drum Ø: 102 mm (4 in)
- Clevis pin Ø: 7.9 mm (5/16 in)
- Pin-to-pin length: 188 mm (7 3/8 in)
- Jaw width: 10 mm (3/8 in)
- Maximum luff wire Ø: 5 mm (3/16 in)
-
