ID
1299246
$ 1,223.13
1-2 weeks delivery time
-
+
The Harken 436 high-load furling system for 5 mm luff wire is designed for larger small boats and dinghies, with independent swivels and an optional hoistable halyard swivel, handling lines up to 6 mm and a maximum load of 907 kg, weighing 646 g.
- Description
- Ask a Question
-

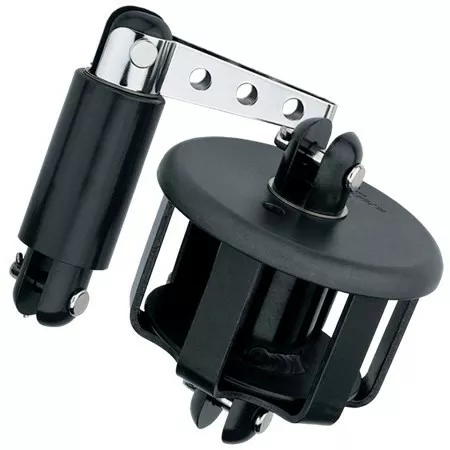

Harken 436 - High-Load Furling System 5mm Luff Wire
The Harken 436 is designed for larger small boats and dinghies, allowing effortless sail furling from the cockpit. Its optional hoistable ball bearing halyard swivel enables raising or lowering the sail without removing the headstay, and independent swivels provide precise luff tensioning and mast rake adjustment.
- Weight: 646 g / 22.8 oz
- Maximum line diameter: 6 mm / 1/4 in
- Maximum working load: 907 kg / 2000 lb
- Footnote: Includes drum and upper swivel; hoistable swivel not included
- Drum diameter: 106 mm / 4 3/16 in
- Clevis pin diameter: 7.9 mm / 5/16 in
- Pin-to-pin length: 102 mm / 4 in
- Jaw width: 10 mm / 3/8 in
- Maximum luff wire diameter: 5 mm / 3/16 in
- Recommended monohull length: 6.1 - 7.6 m / 20 - 25 ft
- Recommended multihull length: 5.5 - 7 m / 18 - 23 ft
- Includes upper swivel: 207
- Includes drum: 208
- Item number: HK436
-
